M8 KCF Pointed Positioning Pin | High-Precision Welding Positioning Accessory
Product Overview
Guangzhou Jiahe Automation Equipment Co., Ltd. M8 KCF Pointed Positioning Pin is a professional high-precision positioning accessory exclusively developed for automated resistance welding systems, specifically designed to solve common pain points such as workpiece misalignment, positioning deviation, poor welding consistency and feeding jamming in automatic feeding, full-automated welding and mass production scenarios. As a core product in our welding positioning accessory series, this locating pin integrates advanced KCF material properties, precision machining technology and functional pointed design, providing stable, accurate and efficient positioning support for workpieces during high-speed automated welding operations. It is tailor-made for M8 specifications (standard thread M8×1.25 for coarse thread and M8×1.0 for fine thread superscript:1), with a sharp, precision-machined pointed structure that is specially optimized for automatic feeding systems, making it ideal for precision welding of auto parts, hardware components and sheet metal products that require high positioning accuracy, fast feeding and stable assembly. Compared with ordinary locating pins made of ceramic or common steel, our M8 KCF pointed positioning pin features superior toughness, excellent high-temperature resistance, precise dimensional control and long service life, perfectly adapting to harsh welding environments with high heat, welding spatter and high-frequency positioning operations. It is particularly suitable for matching automatic nut feeders, which is a key advantage over round head locating pins designed for manual feeding scenarios superscript:3.

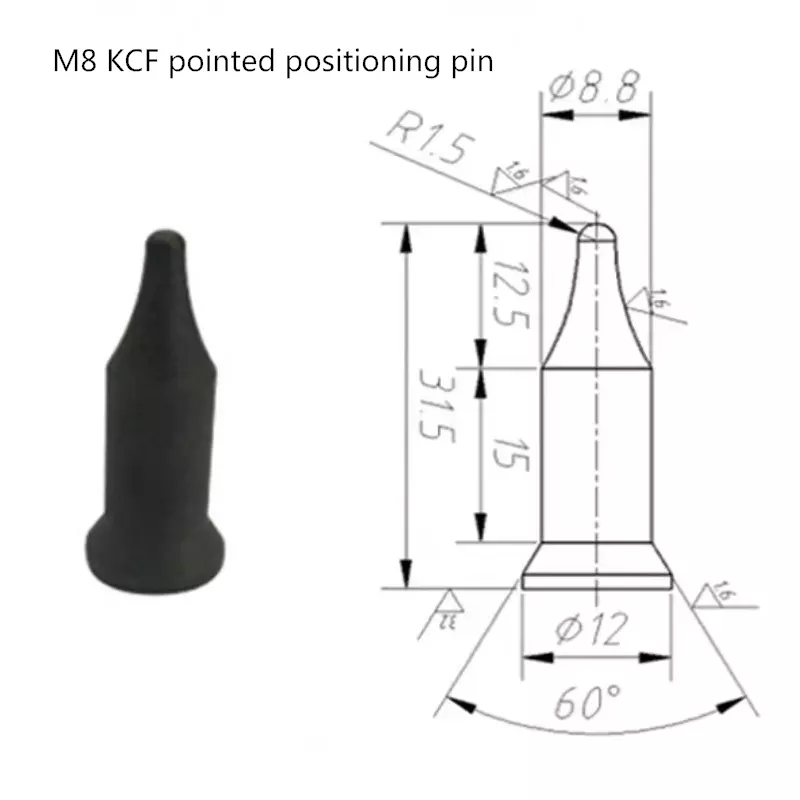

Tailored for the high-precision positioning needs of M8-sized workpieces in welding lines with automatic feeding systems, our locating pin adopts a one-piece KCF material structure, with a precision-machined pointed tip (standard pointed angle 60°, tip diameter 1.0mm superscript:5) and a matching M8 thread design that perfectly fits mainstream welding jigs, fixtures, positioning bases and automatic feeding workstations. KCF, a special chromium-iron alloy material originally developed by Toshiba Corporation, forms a high-quality insulating layer (8-10μ thick) on its surface through special heat treatment (1000-1500℃), enabling it to effectively isolate welding current while maintaining excellent mechanical strength. This unique material advantage makes it an ideal alternative to traditional ceramic locating pins, solving the problem of ceramic pins being brittle and easy to break superscript:3. The pointed design ensures smooth, fast guiding of workpieces during automatic feeding, enabling precise alignment with workpiece holes (standard inner hole diameter 9mm for M8 nuts superscript:3) without jamming, which is a key advantage over round head locating pins that are more suitable for manual feeding. The precise thread and positioning accuracy ensure that workpieces are fixed in the correct position during welding, avoiding deviation, tilting or displacement. It is widely compatible with various resistance welding equipment such as robotic spot welders, projection welders and fixed spot welders, and is widely used in automotive manufacturing, hardware processing, sheet metal fabrication and precision machinery industries, especially suitable for mass, high-standard welding lines with automatic feeding that require strict positioning accuracy and efficient feeding.
Premium KCF Material & Advanced Manufacturing Process
Adhering to the production principle of "Materials as the foundation, technology as the core, and quality as the life", we select high-quality KCF material (chromium-iron alloy) for our M8 KCF Pointed Positioning Pin — a special metal material that combines the advantages of metal toughness and ceramic insulation. Different from ordinary steel or ceramic materials, KCF is processed through special heat treatment at 1000-1500℃, forming a dense insulating layer on the surface, which can effectively isolate welding current and prevent arc leakage, while its metal matrix ensures excellent toughness and impact resistance, avoiding brittle fracture common in ceramic locating pins superscript:3. All KCF raw materials undergo strict incoming inspection, including material composition testing, insulation performance verification, high-temperature resistance detection and mechanical strength test, to ensure stable performance (insulation resistance >1.0×10¹²Ω, continuous use temperature up to 400℃, instantaneous high-temperature resistance up to 600℃), laying a solid foundation for the locating pin's long-term stable operation in harsh welding environments. Compared with imported KCF materials, our domestically produced KCF material maintains the same performance while offering higher cost-effectiveness, making it a cost-efficient choice for high-precision positioning needs in automatic feeding welding lines.
Our M8 KCF Pointed Positioning Pin adopts an integrated manufacturing process of precision CNC turning, high-temperature heat treatment, precision grinding and pointed tip polishing. We adopt advanced CNC machining technology to ensure that all dimensions of the locating pin (thread specification, pointed tip size, overall length, positioning accuracy) meet international standards (GB, DIN, ISO, ANSI), with strict tolerance control (±0.003~±0.005mm, P0 level precision superscript:3) to ensure precise matching with M8-sized workpieces, welding fixtures and automatic feeding workstations. The pointed tip is precision ground to a sharp, burr-free finish (Ra≤0.8μm), ensuring smooth guiding of workpieces during automatic feeding without jamming or damaging workpiece holes. The high-temperature heat treatment process enhances the material's hardness (HRC 45-50) and wear resistance, making the locating pin not easy to wear, deform or corrode under long-term high-frequency positioning and high-temperature welding conditions. The thread part is processed according to standard M8 specifications (M8×1.25 coarse thread and M8×1.0 fine thread superscript:1), with precise tooth pitch (1.25mm for coarse thread, 1.0mm for fine thread) and smooth surface; for 6g grade external thread, the major diameter upper limit is φ7.972 and lower limit is φ7.76, while the pitch diameter upper limit is 7.16 and lower limit is 7.042 superscript:1, ensuring firm installation and no loosening during welding vibration and automatic operation. Every finished product undergoes comprehensive quality inspection, including dimensional accuracy testing, insulation performance detection, wear resistance verification and surface defect inspection, to ensure zero defects before delivery. Standard models are available in common lengths (15~40mm) and can be customized according to customer needs, compatible with mainstream welding jigs, fixtures and automatic feeding workstations at home and abroad, and perfectly matching the standard inner hole diameter of 6.647~6.912mm for M8 nuts (6H grade) superscript:1.
Core Product Advantages
1. Premium KCF Material, Superior Performance
Made of high-quality KCF chromium-iron alloy, the M8 KCF Pointed Positioning Pin combines the advantages of metal toughness and ceramic insulation. The special heat treatment process forms a dense 8-10μ thick insulating layer on the surface, which can effectively isolate welding current, prevent arc leakage and short circuit, and avoid damage to workpieces or equipment caused by current conduction. Compared with traditional ceramic locating pins, KCF material has better toughness and impact resistance, effectively solving the problem of ceramic pins being brittle and easy to break, greatly extending the service life of the locating pin superscript:3. It also has excellent high-temperature resistance, maintaining stable performance and structural integrity in continuous high-temperature environments (up to 400℃) and resisting instantaneous high temperatures up to 600℃, which is far superior to ordinary steel locating pins. The material's excellent wear resistance ensures that the pointed tip does not easily wear or deform even under frequent positioning operations, maintaining precise positioning accuracy for a long time, which is crucial for stable operation of automatic feeding welding lines. Additionally, the KCF material's metal matrix ensures good machinability, allowing for precise processing of the pointed tip and thread structures to meet strict dimensional requirements.
2. Precision M8 Design, Accurate Positioning & Automatic Feeding Compatibility
The locating pin is specially designed for M8 specifications, with a precision-machined thread (M8×1.25 coarse thread and M8×1.0 fine thread superscript:1) and pointed tip structure that perfectly fits M8-sized workpieces, welding fixtures and automatic feeding workstations. The strict tolerance control (±0.003~±0.005mm, P0 level precision superscript:3) ensures ultra-high positioning accuracy, effectively avoiding workpiece misalignment, tilting or displacement during welding, and ensuring consistent welding quality. The pointed tip design is specially optimized for automatic feeding scenarios, featuring a sharp, smooth surface that allows for fast, unobstructed guiding of workpieces during automatic delivery, preventing feeding jamming — a key advantage over round head locating pins which are more suitable for manual feeding systems. The precise thread design ensures firm installation with welding jigs, no loosening during welding vibration and automatic operation, and stable positioning performance, fully adapting to mass, high-standard welding lines with automatic feeding. It also matches the standard M8 thread drilling diameter (6.7mm for M8×1.25, 6.92mm for M8×1.0 superscript:2) and the standard inner hole diameter of M8 nuts, ensuring seamless assembly with existing fixtures and automatic feeding equipment.
3. Pointed Tip Design, Ideal for Automatic Feeding & High-Speed Positioning
The integral pointed tip structure is a key design feature of our M8 KCF locating pin, specifically developed for automatic workpiece feeding and high-speed positioning. Unlike round head locating pins which are designed for manual feeding systems, the sharp, precision-ground pointed tip ensures smooth, fast guiding of workpieces into position during automatic feeding, reducing friction between the pin and workpiece holes, and avoiding jamming or misalignment — a common pain point in automatic feeding welding lines, especially for high-speed mass production. The pointed tip’s 60° angle and 1.0mm tip diameter superscript:5 are optimized for precise alignment with M8 workpiece holes, ensuring that workpieces are quickly and accurately positioned without deviation. For automatic feeding scenarios, the pointed tip design enables seamless cooperation with automatic nut feeders superscript:3, improving feeding efficiency and reducing production downtime. The sharp tip also ensures tight contact with workpiece holes, enhancing positioning stability during welding and preventing displacement caused by welding vibration, which is essential for maintaining consistent welding quality in mass production.
4. Strong Customization Capability for Diversified Needs
We support full non-standard customization according to customer-provided drawings, samples and actual welding working conditions. Whether it is the size specifications (overall length 12~100mm, pointed tip angle 45°~90°, thread specification M8×1.25/M8×1.0 or non-standard threads with customized pitch), material optimization (enhanced wear-resistant KCF, customized insulation layer thickness), or special structural design (extended thread, stepped pointed tip, anti-slip thread), our professional R&D and machining team can provide targeted solutions. We can also customize the locating pin according to the specific model of welding equipment (robotic spot welder, projection welder) and automatic feeding workstation, workpiece material (high-strength steel, aluminum alloy, galvanized plate) and working environment (high temperature, high humidity, heavy spatter), meeting the diversified and personalized positioning needs of different industries. For special positioning scenarios, we can also adjust the pointed tip angle and diameter to ensure perfect fit with workpieces, and optimize the insulation layer thickness according to specific current isolation requirements. We can also customize thread precision (6h, 6g grade) according to customer needs, adjusting major diameter and pitch diameter tolerance to match different assembly requirements superscript:1.
5. Durable and Wear-Resistant, High Cost-Effectiveness
The combination of premium KCF material and advanced manufacturing process greatly enhances the wear resistance, impact resistance and corrosion resistance of the M8 KCF Pointed Positioning Pin. The high hardness (HRC 45-50) and wear-resistant surface ensure that the locating pin can withstand long-term high-frequency positioning and automatic feeding operations without wear or deformation, extending the replacement cycle. Compared with ceramic locating pins, it has a longer service life (5-8 times that of ordinary ceramic pins), reducing production downtime and maintenance costs superscript:3. The excellent high-temperature resistance and insulation performance avoid frequent replacement caused by material aging or insulation failure, further improving cost-effectiveness. Its durable performance also ensures stable positioning accuracy in mass production, reducing the rate of defective products and improving production efficiency, making it a cost-efficient choice for mass, high-standard welding lines with automatic feeding. Additionally, the pointed tip’s precision machining ensures consistent performance, reducing the need for frequent adjustments and maintenance, and its smooth surface reduces feeding resistance and workpiece hole wear, lowering rework costs and improving operational efficiency.
Wide Application Scenarios
Our M8 KCF Pointed Positioning Pin is widely used in various resistance welding equipment with automatic feeding systems, highly compatible with mainstream robotic spot welders, projection welders, fixed spot welders, welding jigs and automatic feeding workstations at home and abroad. It is specially designed for M8-sized workpieces and automatic feeding scenarios, and its core application fields include:
-
Automotive manufacturing: Precision positioning of M8-sized workpieces such as auto body components, chassis brackets, engine parts and fasteners during welding with automatic feeding systems. The KCF material's insulation performance prevents current conduction damage to workpieces and nut threads, while the pointed tip design ensures smooth, fast feeding and precise positioning, adapting to the high-speed mass production needs of automotive manufacturers. It is widely used in full-automated welding lines of automotive manufacturers, especially suitable for welding of galvanized auto parts and high-strength steel components, and perfectly matches the standard inner hole diameter of M8 nuts superscript:1. The M8 thread design (M8×1.25/M8×1.0) perfectly matches automotive welding fixtures, ensuring stable positioning during automatic operation and welding, and is compatible with automatic nut feeders superscript:3.
-
Hardware & fastener industry: Precision positioning of M8 nuts, bolts and mechanical parts during resistance welding with automatic feeding systems. The precise thread and pointed tip design ensure accurate positioning of fasteners, avoiding welding deviation and ensuring firm bonding between fasteners and workpieces, while enabling fast, jamming-free automatic feeding. It is suitable for mass production lines of hardware fasteners, reducing the frequency of locating pin replacement and improving production efficiency. The KCF material's toughness and wear resistance also adapt to the harsh working environment of hardware processing, resisting the erosion of dust and welding spatter, and ensuring smooth operation of automatic feeding workstations.
-
Sheet metal fabrication: Positioning of M8-sized sheet metal components, cabinets and brackets during welding with automatic feeding systems. The pointed tip design ensures fast, accurate guiding and positioning of sheet metal workpieces, especially for mass-produced sheet metal parts, while the high positioning accuracy ensures that the sheet metal components are welded in the correct position, avoiding deformation and improving product consistency. For narrow operation spaces, the compact design of the locating pin can better adapt to the working environment, and the easy installation and disassembly feature facilitates quick maintenance and replacement. The sharp pointed tip also ensures tight fit with workpiece holes, enhancing positioning stability during high-speed welding.
-
General industrial manufacturing: High-standard positioning in mass welding scenarios with automatic feeding systems, such as electrical equipment, construction machinery, instrumentation, railway accessories and shipbuilding parts. The M8 KCF locating pin provides stable and accurate positioning support, ensuring welding quality and production efficiency, especially for workpieces with strict positioning accuracy and high-speed feeding requirements. Its excellent high-temperature resistance and insulation performance also make it suitable for high-temperature welding scenarios such as submerged arc welding, expanding the application scope. It is also applicable to precision mechanical processing scenarios that require high positioning accuracy (P0 level superscript:3) and compatibility with automatic feeding operations, such as precision instrument component welding.
Why Choose Jiahe M8 KCF Pointed Positioning Pin?
With more than 10 years of deep cultivation in the field of automated welding equipment and accessories, Guangzhou Jiahe is a national high-tech enterprise with a complete R&D, production and quality control system. Our M8 KCF Pointed Positioning Pin inherits Jiahe's consistent quality concept, integrating professional KCF material application, precision machining technology and user-oriented design tailored for automatic feeding systems and high-speed positioning. It is widely recognized by domestic and foreign customers for its reliable performance, precise positioning, long service life and strong customization capability, establishing a good brand reputation in the global welding industry. We strictly control every link from KCF raw material selection to production and inspection, ensuring that each locating pin meets international standards (GB, DIN, ISO, ANSI) and customer requirements, especially for the precise control of KCF material heat treatment and pointed tip machining which are the core of the product. The advanced CNC machining and precision grinding technology ensure the locating pin's stability in high-demand automatic feeding welding scenarios, and our material selection and thread precision control (6h, 6g grade superscript:1) fully consider the characteristics of different welding environments and workpiece requirements.
We provide one-stop after-sales service and technical support, responding quickly to customer needs such as product consultation, customization scheme design, installation guidance and after-sales maintenance. We are committed to becoming a reliable partner in the field of automatic welding, providing customers with cost-effective M8 KCF Pointed Positioning Pin solutions and boosting the stability and efficiency of welding lines with automatic feeding systems, whether for standard M8 positioning scenarios or special customization needs (such as thread precision adjustment or pointed tip angle optimization).
