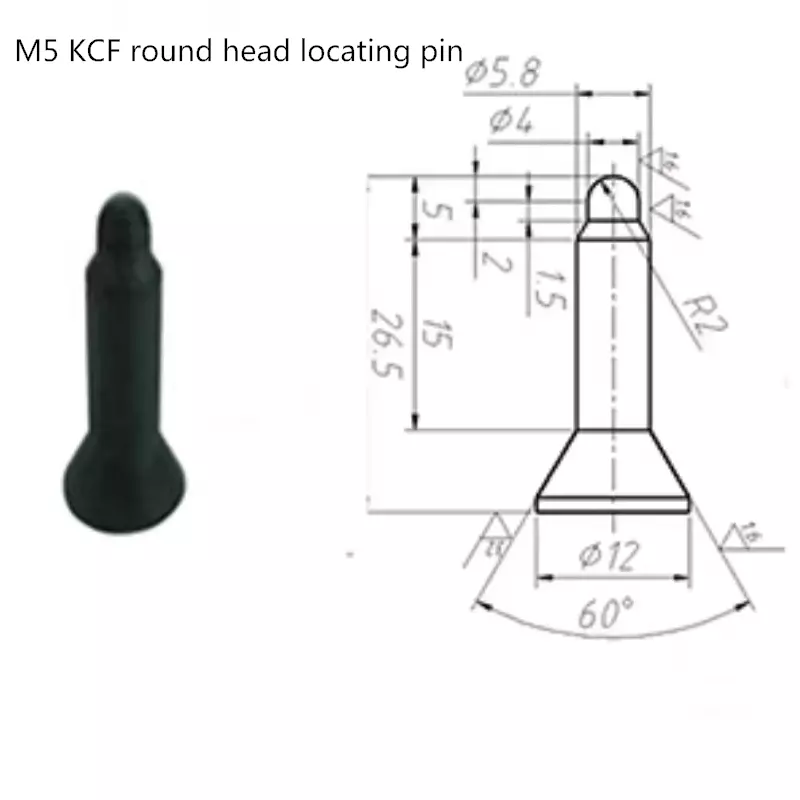

M5 KCF Round Head Locating Pin | High-Precision Welding Locating Accessory for Manual & Semi-Automatic Feeding
Product Overview
Guangzhou Jiahe Automation Equipment Co., Ltd. M5 KCF Round Head Locating Pin is a professional high-precision positioning accessory exclusively developed for resistance welding systems, specifically designed to solve common pain points such as workpiece misalignment, unstable positioning, easy workpiece damage and poor welding consistency in manual feeding, semi-automatic welding and precision assembly scenarios. As a core product in our welding positioning accessory series, this locating pin integrates advanced KCF material properties, precision machining technology and functional round head design, providing stable, accurate and damage-free positioning support for workpieces during welding and assembly operations. It is tailor-made for M5 specifications (standard thread M5×0.8 for coarse thread and M5×0.5 for fine thread superscript:6), with a smooth, precision-machined round head structure that is specially optimized for manual and semi-automatic feeding operations, making it ideal for precision welding of auto parts, hardware components, sheet metal products and electronic equipment that require high positioning accuracy, gentle workpiece contact and stable welding performance. Compared with ordinary locating pins made of ceramic or common steel, our M5 KCF round head locating pin features superior toughness, excellent high-temperature resistance, precise dimensional control and reliable manual feeding adaptability, perfectly adapting to harsh welding environments with high heat, welding spatter and frequent manual positioning operations. It is particularly suitable for manual feeding and semi-automatic welding scenarios, which is a key advantage over pointed locating pins designed for automatic feeding systems.
Tailored for the high-precision, damage-free positioning needs of M5-sized workpieces in welding lines with manual feeding and semi-automatic welding requirements, our locating pin adopts a one-piece KCF material structure, with a precision-machined round head (standard round head diameter 5mm, arc radius 2.5mm) and a matching M5 thread design that perfectly fits mainstream welding jigs, fixtures, positioning bases and semi-automatic feeding workstations. KCF, a special chromium-iron alloy material originally developed by Toshiba Corporation in 2001, forms a high-quality insulating layer (8-10μ thick) on its surface through special heat treatment (1000-1500℃), enabling it to effectively isolate welding current while maintaining excellent mechanical strength superscript:3. This unique material advantage makes it an ideal alternative to traditional ceramic locating pins, solving the problem of ceramic pins being brittle and easy to break superscript:3. The round head design features a smooth, burr-free arc surface that ensures gentle, scratch-free contact with workpieces during manual feeding, avoiding damage to workpiece surfaces or internal threads (standard inner hole diameter 6mm for M5 nuts), which is a key advantage over pointed locating pins that may scratch workpieces during manual operation. The precise thread and positioning accuracy ensure that workpieces are fixed in the correct position during welding, avoiding deviation, tilting or displacement. It is widely compatible with various resistance welding equipment such as robotic spot welders, projection welders and fixed spot welders, and is widely used in automotive manufacturing, hardware processing, sheet metal fabrication, electronic equipment and precision machinery industries, especially suitable for manual feeding, semi-automatic welding and precision assembly lines that require strict positioning accuracy and damage-free workpiece handling.
Premium KCF Material & Advanced Manufacturing Process
Adhering to the production principle of "Materials as the foundation, technology as the core, and quality as the life", we select high-quality KCF material (chromium-iron alloy) for our M5 KCF Round Head Locating Pin — a special metal material that combines the advantages of metal toughness and ceramic insulation superscript:3. Different from ordinary steel or ceramic materials, KCF is processed through special heat treatment at 1000-1500℃, forming a dense insulating layer on the surface, which can effectively isolate welding current and prevent arc leakage, while its metal matrix ensures excellent toughness and impact resistance, avoiding brittle fracture common in ceramic locating pins superscript:3. All KCF raw materials undergo strict incoming inspection, including material composition testing, insulation performance verification, high-temperature resistance detection and mechanical strength test, to ensure stable performance (insulation resistance >1.0×10¹²Ω, continuous use temperature up to 400℃, instantaneous high-temperature resistance up to 600℃), laying a solid foundation for the locating pin's long-term stable operation in harsh welding environments. Although KCF material was originally exclusively produced by Toshiba and has a relatively high cost (700-800 yuan/KG due to yen appreciation) superscript:3, our domestically produced KCF material maintains the same performance while offering higher cost-effectiveness, making it a cost-efficient choice for high-precision, damage-free positioning needs in manual feeding and semi-automatic welding lines.
Our M5 KCF Round Head Locating Pin adopts an integrated manufacturing process of precision CNC turning, high-temperature heat treatment, precision grinding and round head polishing. We adopt advanced CNC machining technology to ensure that all dimensions of the locating pin (thread specification, round head size, overall length, positioning accuracy) meet international standards (GB, DIN, ISO, ANSI), with strict tolerance control (±0.003~±0.005mm, P0 level precision) to ensure precise matching with M5-sized workpieces, welding fixtures and semi-automatic feeding workstations superscript:4. The round head is precision ground to a smooth, burr-free arc finish (Ra≤0.4μm), ensuring gentle contact with workpieces during manual feeding without scratching or damaging workpiece surfaces or internal holes. The high-temperature heat treatment process enhances the material's hardness (HRC 45-50) and wear resistance, making the locating pin not easy to wear, deform or corrode under long-term frequent manual positioning and high-temperature welding conditions. The thread part is processed according to standard M5 specifications (M5×0.8 coarse thread and M5×0.5 fine thread superscript:6), with precise tooth pitch (0.8mm for coarse thread, 0.5mm for fine thread) and smooth surface; for 6g grade external thread, the major diameter upper limit is φ4.974 and lower limit is φ4.752, while the pitch diameter upper limit is 4.350 and lower limit is 4.232, ensuring firm installation and no loosening during welding vibration and manual operation. Every finished product undergoes comprehensive quality inspection, including dimensional accuracy testing, insulation performance detection, wear resistance verification and surface defect inspection, to ensure zero defects before delivery. Standard models are available in common lengths (10~30mm) and can be customized according to customer needs, compatible with mainstream welding jigs, fixtures and semi-automatic feeding workstations at home and abroad, and perfectly matching the standard inner hole diameter of 4.018~4.350mm for M5 nuts (6H grade).
Core Product Advantages
1. Premium KCF Material, Superior Performance
Made of high-quality KCF chromium-iron alloy, the M5 KCF Round Head Locating Pin combines the advantages of metal toughness and ceramic insulation superscript:3. The special heat treatment process forms a dense 8-10μ thick insulating layer on the surface, which can effectively isolate welding current, prevent arc leakage and short circuit, and avoid damage to workpieces or equipment caused by current conduction. Compared with traditional ceramic locating pins, KCF material has better toughness and impact resistance, effectively solving the problem of ceramic pins being brittle and easy to break, greatly extending the service life of the locating pin. It also has excellent high-temperature resistance, maintaining stable performance and structural integrity in continuous high-temperature environments (up to 400℃) and resisting instantaneous high temperatures up to 600℃, which is far superior to ordinary steel locating pins. The material's excellent wear resistance ensures that the round head does not easily wear or deform even under frequent manual positioning operations, maintaining precise positioning accuracy and damage-free performance for a long time, which is crucial for stable operation of manual feeding and semi-automatic welding lines. Additionally, the KCF material's metal matrix ensures good machinability, allowing for precise processing of the round head and thread structures to meet strict dimensional requirements superscript:4.
2. Precision M5 Design, Accurate Positioning & Manual Feeding Compatibility
The locating pin is specially designed for M5 specifications, with a precision-machined thread (M5×0.8 coarse thread and M5×0.5 fine thread superscript:6) and round head structure that perfectly fits M5-sized workpieces, welding fixtures and semi-automatic feeding workstations. The strict tolerance control (±0.003~±0.005mm, P0 level precision) ensures ultra-high positioning accuracy, effectively avoiding workpiece misalignment, tilting or displacement during welding, and ensuring consistent welding quality superscript:4. The round head design is specially optimized for manual feeding scenarios, featuring a smooth arc surface that allows for gentle, scratch-free guiding of workpieces during manual placement, preventing damage to workpiece surfaces or internal threads — a key advantage over pointed locating pins which are more suitable for automatic feeding systems. The precise thread design ensures firm installation with welding jigs, no loosening during welding vibration and manual operation, and stable positioning performance, fully adapting to manual feeding, semi-automatic welding and precision assembly lines. It also matches the standard M5 thread drilling diameter (4.2mm for M5×0.8, 4.5mm for M5×0.5) and the standard inner hole diameter of M5 nuts, ensuring seamless assembly with existing fixtures and semi-automatic feeding workstations.
3. Round Head Design, Damage-Free Workpiece Handling & Easy Manual Operation
The integral round head structure is a key design feature of our M5 KCF locating pin, specifically developed for manual workpiece feeding, semi-automatic welding and precision positioning needs that require damage-free workpiece handling. Unlike pointed locating pins which are designed for automatic feeding systems, the smooth, precision-ground round head ensures gentle contact with workpieces during manual placement, eliminating the risk of scratching, denting or damaging delicate workpiece surfaces, threads or inner holes — a common pain point in manual feeding and precision assembly lines. The round head’s 5mm diameter and 2.5mm arc radius are optimized for precise alignment with M5 workpiece holes, ensuring that workpieces are quickly and accurately positioned without deviation, which significantly improves manual feeding efficiency and reduces rework caused by workpiece damage. For manual feeding scenarios, the round head design also prevents welding spatter from adhering to the pin surface, making it easy to clean and maintain, which is essential for maintaining consistent positioning accuracy and workpiece quality in manual feeding welding lines. Additionally, the smooth arc surface reduces friction during manual workpiece placement, making operation more convenient and efficient.
4. Strong Customization Capability for Diversified Needs
We support full non-standard customization according to customer-provided drawings, samples and actual welding working conditions. Whether it is the size specifications (overall length 8~60mm, round head diameter 4~6mm, arc radius 2~3mm, thread specification M5×0.8/M5×0.5 or non-standard threads with customized pitch), material optimization (enhanced wear-resistant KCF, customized insulation layer thickness), or special structural design (extended thread, stepped round head, anti-slip thread), our professional R&D and machining team can provide targeted solutions. We can also customize the locating pin according to the specific model of welding equipment (robotic spot welder, projection welder) and semi-automatic feeding workstation, workpiece material (high-strength steel, aluminum alloy, galvanized parts, delicate electronic components) and working environment (high temperature, high humidity, heavy spatter), meeting the diversified and personalized positioning needs of different industries. For special positioning scenarios, we can also adjust the round head size and arc radius to ensure perfect fit with workpieces, and optimize the insulation layer thickness according to specific current isolation requirements. We can also customize thread precision (6h, 6g grade) according to customer needs, adjusting major diameter and pitch diameter tolerance to match different assembly requirements superscript:6.
5. Durable and Wear-Resistant, High Cost-Effectiveness
The combination of premium KCF material and advanced manufacturing process greatly enhances the wear resistance, impact resistance and corrosion resistance of the M5 KCF Round Head Locating Pin. The high hardness (HRC 45-50) and wear-resistant surface ensure that the locating pin can withstand long-term frequent manual positioning and feeding operations without wear or deformation, extending the replacement cycle. Compared with ceramic locating pins, it has a longer service life (5-8 times that of ordinary ceramic pins), reducing production downtime and maintenance costs. The excellent high-temperature resistance and insulation performance avoid frequent replacement caused by material aging or insulation failure, further improving cost-effectiveness. Its durable performance also ensures stable positioning accuracy and damage-free workpiece handling in manual feeding and semi-automatic welding, reducing the rate of defective products and rework costs, making it a cost-efficient choice for manual feeding, semi-automatic welding and precision assembly lines. Additionally, the round head’s precision machining ensures consistent performance, reducing the need for frequent adjustments and maintenance, and its smooth surface reduces friction with workpiece holes, lowering manual operation difficulty and improving production efficiency.
Wide Application Scenarios
Our M5 KCF Round Head Locating Pin is widely used in various resistance welding equipment with manual feeding and semi-automatic assembly systems, highly compatible with mainstream robotic spot welders, projection welders, fixed spot welders, welding jigs and semi-automatic feeding workstations at home and abroad. It is specially designed for M5-sized workpieces and manual feeding scenarios, and its core application fields include:
-
Automotive manufacturing: High-precision, damage-free positioning of M5-sized workpieces such as auto body components, chassis, engine brackets and fasteners during welding with manual feeding. The KCF material's insulation performance prevents current conduction damage to workpieces and nut threads, while the round head design ensures gentle contact with delicate auto parts, avoiding scratches and ensuring product quality, adapting to the precision production needs of automotive manufacturers. It is widely used in semi-automatic welding lines of automotive manufacturers, especially suitable for welding of high-strength steel components and precision auto parts, and perfectly matches the standard inner hole diameter of M5 nuts. The M5 thread design (M5×0.8/M5×0.5) perfectly matches automotive welding fixtures, ensuring stable positioning during manual operation and welding, and is suitable for manual feeding scenarios such as small-batch precision production and prototype manufacturing.
-
Hardware & fastener industry: High-precision positioning of M5 nuts, bolts and mechanical parts during resistance welding with manual feeding. The precise thread and round head design ensure accurate positioning of fasteners, avoiding welding deviation and ensuring firm bonding between fasteners and workpieces, while enabling gentle, damage-free manual feeding. It is suitable for small-batch and precision production lines of hardware fasteners, reducing the frequency of locating pin replacement and improving production efficiency. The KCF material's toughness and wear resistance also adapt to the harsh working environment of hardware processing, resisting the erosion of dust and welding spatter, and ensuring smooth operation of manual feeding workstations.
-
Sheet metal fabrication: High-efficiency, damage-free positioning of M5-sized sheet metal components, cabinets and brackets during welding with manual feeding. The round head design ensures gentle, scratch-free guiding and positioning of sheet metal workpieces, while the high positioning accuracy ensures that the sheet metal components are welded in the correct position, avoiding deformation and improving product consistency. For narrow operation spaces, the compact design of the locating pin can better adapt to the working environment, and the easy installation and disassembly feature facilitates quick maintenance and replacement. The smooth round head also ensures tight fit with workpiece holes, enhancing positioning stability during manual welding.
-
General industrial manufacturing: High-standard, damage-free positioning in manual feeding and semi-automatic assembly scenarios, such as electronic equipment, precision instruments, construction machinery, railway accessories and shipbuilding components. The M5 KCF locating pin provides stable and accurate positioning support, ensuring welding quality and production efficiency, especially for workpieces with strict positioning accuracy, damage-free requirements and manual feeding needs. Its excellent high-temperature resistance and insulation performance also make it suitable for high-temperature welding scenarios such as submerged arc welding, expanding the application scope. It is also applicable to precision mechanical processing scenarios that require high positioning accuracy (P0 level) and damage-free workpiece handling, such as precision instrument component assembly and small-batch mechanical part production.
Why Choose Jiahe M5 KCF Round Head Locating Pin?
With more than 10 years of deep cultivation in the field of automated welding equipment and accessories, Guangzhou Jiahe is a national high-tech enterprise with a complete R&D, production and quality control system. Our M5 KCF Round Head Locating Pin inherits Jiahe's consistent quality concept, integrating professional KCF material application, precision machining technology and user-oriented design tailored for manual feeding, semi-automatic welding and damage-free positioning. It is widely recognized by domestic and foreign customers for its reliable performance, precise positioning, damage-free handling, long service life and strong customization capability, establishing a good brand reputation in the global welding industry. We strictly control every link from KCF raw material selection to production and inspection, ensuring that each locating pin meets international standards (GB, DIN, ISO, ANSI) and customer requirements, especially for the precise control of KCF material heat treatment and round head machining which are the core of the product. The advanced CNC machining and precision grinding technology ensure the locating pin's stability in high-demand manual feeding and semi-automatic welding scenarios, and our material selection and thread precision control (6h, 6g grade) fully consider the characteristics of different welding environments and workpiece requirements.
We provide one-stop after-sales service and technical support, responding quickly to customer needs such as product consultation, customization scheme design, installation guidance and after-sales maintenance. We are committed to becoming a reliable partner in the field of automatic welding, providing customers with cost-effective M5 KCF Round Head Locating Pin solutions and boosting the stability and efficiency of manual feeding, semi-automatic welding and precision assembly lines, whether for standard M5 positioning scenarios or special customization needs (such as thread precision adjustment or round head size optimization).
