M12 KCF Pointed Positioning Pin | High-Precision Welding Positioning Accessory
Product Overview
Guangzhou Jiahe Automation Equipment Co., Ltd. M12 KCF Pointed Positioning Pin is a professional high-precision positioning accessory exclusively developed for automated resistance welding systems, specifically designed to solve common pain points such as workpiece misalignment, positioning deviation, poor welding consistency and low production efficiency in high-volume, automated feeding welding scenarios. As a core product in our welding positioning accessory series, this locating pin integrates advanced KCF material properties, precision machining technology and functional pointed design, providing stable, accurate and reliable positioning support for workpieces during welding operations. It is tailor-made for M12 specifications (standard thread M12×1.75 for coarse thread and M12×1.25 for fine thread superscript:10), with a sharp, precision-machined pointed structure that is specially optimized for automatic nut feeding machines superscript:1 superscript:3, making it ideal for precision welding of auto parts, hardware components and sheet metal products that require high positioning accuracy and compatibility with automated feeding systems. Compared with ordinary locating pins made of ceramic or common steel, our M12 KCF pointed positioning pin features superior toughness, excellent high-temperature resistance, precise dimensional control and long service life, perfectly adapting to harsh welding environments with high heat, welding spatter and frequent positioning operations.

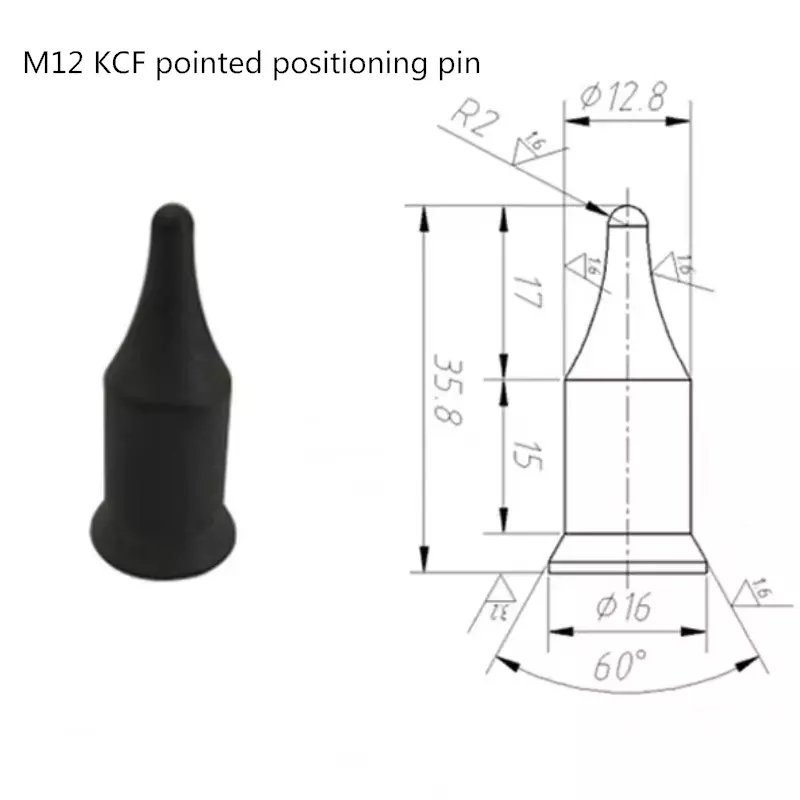

Tailored for the high-precision positioning needs of M12-sized workpieces in automated welding lines with automatic feeding systems, our locating pin adopts a one-piece KCF material structure, with a precision-machined pointed tip (standard pointed angle 60° superscript:7) and a matching M12 thread design that perfectly fits mainstream welding jigs, fixtures, positioning bases and automatic nut feeding machines superscript:1 superscript:3. KCF, a special chromium-iron alloy material originally developed by Toshiba Corporation superscript:1 superscript:2, forms a high-quality insulating layer (5-10μ thick) on its surface through special heat treatment (1000-1500℃) superscript:1 superscript:4, enabling it to effectively isolate welding current while maintaining excellent mechanical strength. This unique material advantage makes it an ideal alternative to traditional ceramic locating pins, solving the problem of ceramic pins being brittle and easy to break superscript:1 superscript:8. The pointed design ensures smooth, accurate guiding and positioning of workpieces (especially nuts) from automatic feeding machines, preventing jamming or misalignment during feeding and positioning, while the precise thread and positioning accuracy ensure that workpieces are fixed in the correct position during welding, avoiding deviation, tilting or displacement. It is widely compatible with various resistance welding equipment such as robotic spot welders, projection welders and fixed spot welders, and is widely used in automotive manufacturing, hardware processing, sheet metal fabrication and precision machinery industries, especially suitable for high-volume, high-standard automated production lines with automatic feeding systems that require strict positioning accuracy.
Premium KCF Material & Advanced Manufacturing Process
Adhering to the production principle of "Materials as the foundation, technology as the core, and quality as the life", we select high-quality KCF material (chromium-iron alloy) for our M12 KCF Pointed Positioning Pin — a special metal material that combines the advantages of metal toughness and ceramic insulation superscript:1 superscript:8. Different from ordinary steel or ceramic materials, KCF is processed through special heat treatment at 1000-1500℃, forming a dense insulating layer on the surface, which can effectively isolate welding current and prevent arc leakage, while its metal matrix ensures excellent toughness and impact resistance, avoiding brittle fracture common in ceramic locating pins superscript:1 superscript:8. All KCF raw materials undergo strict incoming inspection, including material composition testing, insulation performance verification, high-temperature resistance detection and mechanical strength test, to ensure stable performance (insulation resistance >1.0×10¹²Ω, continuous use temperature up to 400℃, instantaneous high-temperature resistance up to 600℃), laying a solid foundation for the locating pin's long-term stable operation in harsh welding environments. Compared with imported KCF materials, our domestically produced KCF material maintains the same performance while offering higher cost-effectiveness, making it a cost-efficient choice for high-precision positioning needs superscript:2.
Our M12 KCF Pointed Positioning Pin adopts an integrated manufacturing process of precision CNC turning, high-temperature heat treatment, precision grinding and surface polishing. We adopt advanced CNC machining technology to ensure that all dimensions of the locating pin (thread specification, pointed angle, overall length, positioning accuracy) meet international standards (GB, DIN, ISO, ANSI), with strict tolerance control (±0.003~±0.005mm) to ensure precise matching with M12-sized workpieces, welding fixtures and automatic feeding machines superscript:4. The pointed tip is precision ground to a sharp, smooth finish (Ra≤0.8μm), ensuring smooth guiding of workpieces from automatic feeders and accurate positioning without damaging workpiece holes or threads. The high-temperature heat treatment process enhances the material's hardness (HRC 45-50) and wear resistance, making the locating pin not easy to wear, deform or corrode under long-term high-frequency positioning and high-temperature welding conditions. The thread part is processed according to standard M12 specifications (M12×1.75 coarse thread and M12×1.25 fine thread superscript:10), with precise tooth pitch and smooth surface, ensuring firm installation and no loosening during operation. Every finished product undergoes comprehensive quality inspection, including dimensional accuracy testing, insulation performance detection, wear resistance verification and surface defect inspection, to ensure zero defects before delivery. Standard models are available in common lengths (20~50mm) and can be customized according to customer needs, compatible with mainstream welding jigs, fixtures and automatic feeding machines at home and abroad, and perfectly matching the standard hole diameter of 13mm for M12 nuts superscript:1.
Core Product Advantages
1. Premium KCF Material, Superior Performance
Made of high-quality KCF chromium-iron alloy, the M12 KCF Pointed Positioning Pin combines the advantages of metal toughness and ceramic insulation. The special heat treatment process forms a dense 5-10μ thick insulating layer on the surface superscript:1 superscript:4, which can effectively isolate welding current, prevent arc leakage and short circuit, and avoid damage to workpieces or equipment caused by current conduction. Compared with traditional ceramic locating pins, KCF material has better toughness and impact resistance, effectively solving the problem of ceramic pins being brittle and easy to break, greatly extending the service life of the locating pin superscript:1 superscript:8. It also has excellent high-temperature resistance, maintaining stable performance and structural integrity in continuous high-temperature environments (up to 400℃) and resisting instantaneous high temperatures up to 600℃, which is far superior to ordinary steel locating pins. The material's excellent wear resistance ensures that the pointed tip does not easily wear or deform even under frequent positioning operations, maintaining precise positioning accuracy for a long time, which is crucial for stable operation of automatic feeding systems.
2. Precision M12 Design, Accurate Positioning & Feeding Compatibility
The locating pin is specially designed for M12 specifications, with a precision-machined thread (M12×1.75 coarse thread and M12×1.25 fine thread superscript:10) and pointed tip structure that perfectly fits M12-sized workpieces, welding fixtures and automatic nut feeding machines superscript:1 superscript:3. The strict tolerance control (±0.003~±0.005mm) ensures ultra-high positioning accuracy, effectively avoiding workpiece misalignment, tilting or displacement during welding, and ensuring consistent welding quality. The pointed tip (standard angle 60° superscript:7) is specially optimized for automatic feeding scenarios, enabling smooth guiding of nuts or workpieces from the feeder into the correct positioning position, preventing jamming and improving feeding and positioning efficiency — a key advantage over round head locating pins which are more suitable for manual feeding superscript:3. The precise thread design ensures firm installation with welding jigs, no loosening during high-frequency welding vibration, and stable positioning performance, fully adapting to high-speed automated welding production lines with automatic feeding systems. It also matches the standard M12 thread drilling diameter (11.04~11.21mm for M12×1.75, 11.31~11.44mm for M12×1.25 superscript:10) and the standard hole diameter of 13mm for M12 nuts superscript:1, ensuring seamless assembly with existing fixtures and feeding equipment.
3. Pointed Tip Design, Ideal for Automatic Feeding Systems
The integral pointed tip structure is a key design feature of our M12 KCF positioning pin, specifically developed for automatic nut feeding machines superscript:1 superscript:3. Unlike round head locating pins which are designed for manual workpiece placement, the sharp, precision-ground pointed tip allows for smooth, accurate guiding of nuts or workpieces from the automatic feeder into the positioning hole, reducing feeding resistance and avoiding jamming or misalignment — a common pain point in automated feeding welding lines. The pointed tip also ensures precise alignment with workpiece holes, especially for M12 nuts, ensuring that the nut is correctly positioned before welding, avoiding thread damage caused by misalignment. The smooth surface of the pointed tip reduces friction between the pin and workpiece, minimizing wear and extending the service life of both the locating pin and the feeding system. For high-volume automated production, this design significantly improves feeding and positioning efficiency, reducing production downtime and improving overall productivity.
4. Strong Customization Capability for Diversified Needs
We support full non-standard customization according to customer-provided drawings, samples and actual welding working conditions. Whether it is the size specifications (overall length 15~100mm, pointed angle 45°~90°, thread specification M12×1.75/M12×1.25 or non-standard threads), material optimization (enhanced wear-resistant KCF, customized insulation layer thickness), or special structural design (extended thread, stepped pointed tip, anti-slip thread), our professional R&D and machining team can provide targeted solutions. We can also customize the locating pin according to the specific model of welding equipment (robotic spot welder, projection welder) and automatic feeding machine, workpiece material (high-strength steel, aluminum alloy, galvanized plate) and working environment (high temperature, high humidity, heavy spatter), meeting the diversified and personalized positioning needs of different industries. For special positioning scenarios, we can also adjust the pointed tip shape and angle to ensure perfect fit with workpieces and feeding systems, and optimize the insulation layer thickness according to specific current isolation requirements.
5. Durable and Wear-Resistant, High Cost-Effectiveness
The combination of premium KCF material and advanced manufacturing process greatly enhances the wear resistance, impact resistance and corrosion resistance of the M12 KCF Pointed Positioning Pin. The high hardness (HRC 45-50) and wear-resistant surface ensure that the locating pin can withstand long-term high-frequency positioning and automatic feeding operations without wear or deformation, extending the replacement cycle. Compared with ceramic locating pins, it has a longer service life (5-8 times that of ordinary ceramic pins), reducing production downtime and maintenance costs superscript:1 superscript:8. The excellent high-temperature resistance and insulation performance avoid frequent replacement caused by material aging or insulation failure, further improving cost-effectiveness. Its durable performance also ensures stable positioning accuracy in mass production, reducing the rate of defective products and improving production efficiency, making it a cost-efficient choice for high-volume automated welding lines with automatic feeding systems. Additionally, the pointed tip’s precision machining ensures consistent performance, reducing the need for frequent adjustments and maintenance.
Wide Application Scenarios
Our M12 KCF Pointed Positioning Pin is widely used in various automated resistance welding equipment with automatic feeding systems, highly compatible with mainstream robotic spot welders, projection welders, fixed spot welders, welding jigs and automatic nut feeding machines at home and abroad. It is specially designed for M12-sized workpieces and automatic feeding scenarios, and its core application fields include:
-
Automotive manufacturing: Precision positioning of M12-sized workpieces such as auto body components, chassis brackets, engine parts and fasteners during automated welding with automatic nut feeding systems. The KCF material's insulation performance prevents current conduction damage to workpieces and nut threads superscript:8, while the pointed tip design ensures smooth feeding and accurate positioning of nuts, adapting to high-efficiency, high-precision production needs. It is widely used in automated welding lines of automotive manufacturers, especially suitable for welding of galvanized auto parts and high-strength steel components, and perfectly matches the standard hole diameter of 13mm for M12 nuts superscript:1. The M12 thread design perfectly matches automotive welding fixtures, ensuring stable positioning during high-speed robot welding.
-
Hardware & fastener industry: Precision positioning of M12 nuts, bolts and mechanical parts during resistance welding with automatic feeding systems. The precise thread and pointed tip design ensure accurate positioning of fasteners, avoiding welding deviation and ensuring firm bonding between fasteners and workpieces. It is suitable for batch production lines of hardware fasteners, reducing the frequency of locating pin replacement and improving production efficiency. The KCF material's toughness and wear resistance also adapt to the harsh working environment of hardware processing, resisting the erosion of dust and welding spatter, and ensuring smooth operation of automatic feeding systems.
-
Sheet metal fabrication: Positioning of M12-sized sheet metal components, cabinets and brackets during welding with automatic feeding systems. The pointed tip design ensures smooth guiding and accurate positioning of workpieces, while the high positioning accuracy ensures that the sheet metal components are welded in the correct position, avoiding deformation and improving product consistency. For narrow operation spaces, the compact design of the locating pin can better adapt to the working environment, and the easy installation and disassembly feature facilitates quick maintenance and replacement. It is also suitable for welding of sheet metal components with special coatings, where the KCF material's insulation performance prevents damage to the coating.
-
General industrial manufacturing: High-standard positioning in high-volume welding scenarios with automatic feeding systems, such as electrical equipment, construction machinery, instrumentation, railway accessories and shipbuilding parts. The M12 KCF locating pin provides stable and accurate positioning support, ensuring welding quality and production efficiency, especially for workpieces with strict positioning accuracy requirements. Its excellent high-temperature resistance and insulation performance also make it suitable for high-temperature welding scenarios such as submerged arc welding, expanding the application scope. It is also applicable to precision mechanical processing scenarios that require high positioning accuracy and compatibility with automatic feeding systems superscript:10.
Why Choose Jiahe M12 KCF Pointed Positioning Pin?
With more than 10 years of deep cultivation in the field of automated welding equipment and accessories, Guangzhou Jiahe is a national high-tech enterprise with a complete R&D, production and quality control system. Our M12 KCF Pointed Positioning Pin inherits Jiahe's consistent quality concept, integrating professional KCF material application, precision machining technology and user-oriented design tailored for automatic feeding systems. It is widely recognized by domestic and foreign customers for its reliable performance, precise positioning, long service life and strong customization capability, establishing a good brand reputation in the global welding industry. We strictly control every link from KCF raw material selection to production and inspection, ensuring that each locating pin meets international standards (GB, DIN, ISO, ANSI) and customer requirements, especially for the precise control of KCF material heat treatment and pointed tip machining which are the core of the product. The advanced CNC machining and precision grinding technology ensure the locating pin's stability in high-demand automated feeding welding scenarios, and our material selection fully considers the characteristics of different welding environments and workpiece requirements.
We provide one-stop after-sales service and technical support, responding quickly to customer needs such as product consultation, customization scheme design, installation guidance and after-sales maintenance. We are committed to becoming a reliable partner in the field of automatic welding, providing customers with cost-effective M12 KCF Pointed Positioning Pin solutions and boosting the stability and efficiency of automated production lines with automatic feeding systems, whether for standard M12 positioning scenarios or special customization needs.
