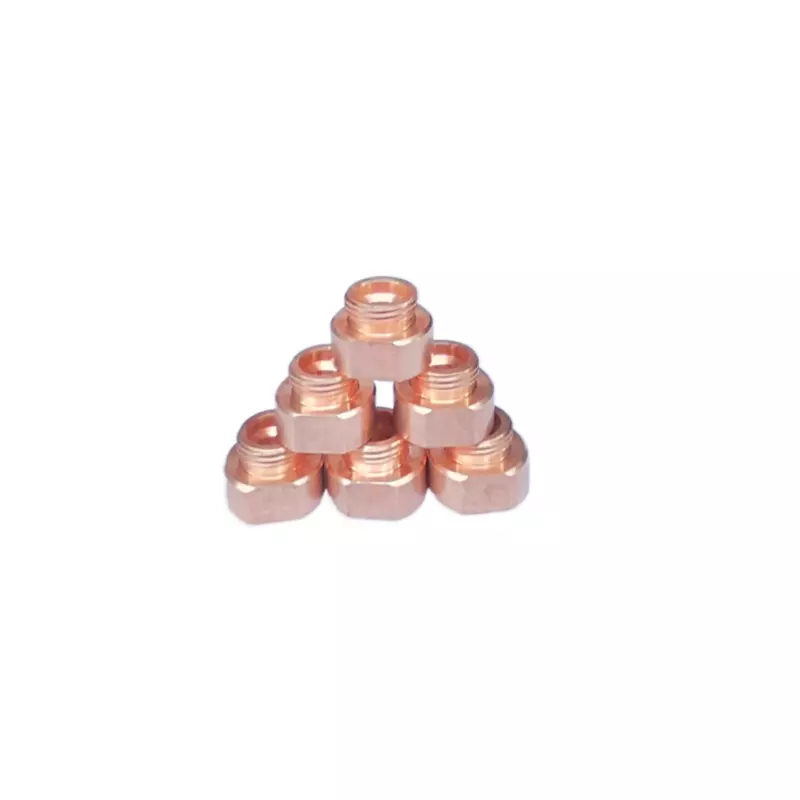

Nut Lower Electrode Cap | High-Precision Resistance Welding Accessory for Nut Welding
Product Overview
Guangzhou Jiahe Automation Equipment Co., Ltd. Nut Lower Electrode Cap is a professional core consumable accessory exclusively developed for nut resistance welding systems, specifically designed as the lower positioning and conducting component for automated nut welding lines. It integrates targeted nut positioning structure, premium copper alloy materials and advanced precision machining technology, aiming to solve the common pain points of nut misalignment, unstable current transmission, poor welding firmness and short service life encountered by traditional lower electrode caps in high-volume nut welding scenarios. As a critical lower matching component for nut upper electrode caps, our Nut Lower Electrode Cap features a precision-machined inner cavity and positioning structure that perfectly fits various nut specifications (M3-M12 common models), ensuring accurate centering and stable clamping of nuts during welding, while realizing efficient current conduction and uniform heat distribution. It is widely compatible with fixed spot welders, suspended spot welders, robotic spot welders and automatic nut welding machines superscript:1 superscript:4, making it ideal for automotive manufacturing, hardware processing, sheet metal fabrication, fastener production and other industries that require high-efficiency, high-standard nut resistance welding, especially for large-batch automated production lines of nuts and nut-assembled workpieces.
Our Nut Lower Electrode Cap is engineered with a precision-machined nut positioning cavity and a matching inner taper design (1/9.6 standard taper) superscript:3, which perfectly fits lower electrode shanks of various specifications and ensures tight connection without loosening during high-frequency welding vibration. Equipped with an optional retractable positioning spring superscript:1, it can realize flexible up-and-down movement of the positioning pin, adapting to the clamping and positioning needs of different nut heights and ensuring full contact between the nut and the electrode surface. Made of high-performance copper alloy materials, it combines excellent electrical conductivity, superior high-temperature resistance and strong wear resistance, effectively withstanding the harsh working environment of high heat, high pressure and welding spatter in nut resistance welding processes. As a cost-effective welding consumable, it typically supports 1000-1200 welding points before needing regrinding or replacement superscript:4, balancing performance and economy for our global customers. Each Nut Lower Electrode Cap undergoes strict quality inspection before leaving the factory, ensuring consistent dimensional accuracy and stable performance, which is crucial for maintaining welding quality in mass nut welding production.
Premium Material & Advanced Manufacturing Process
Adhering to the production principle of "Materials as the foundation, technology as the core, and quality as the life", we select high-performance copper alloy materials for our Nut Lower Electrode Cap, mainly including chromium zirconium copper (CrZrCu, CuCrZr), dispersion-strengthened copper (dispersion copper), and optional alumina copper (CuAl₂O₃) for special working conditions superscript:4. Chromium zirconium copper is the preferred material for most nut welding scenarios, as adding trace amounts of chromium and zirconium to pure copper significantly improves its hardness and high-temperature softening point while maintaining excellent electrical conductivity, achieving a perfect balance of four key welding electrode performance indicators: excellent electrical conductivity, high-temperature mechanical properties, wear resistance, and high hardness and strength superscript:1. Dispersion copper is specially designed for galvanized plate nut welding, effectively solving the problem of electrode sticking caused by chemical reactions between chromium and zinc in traditional chromium zirconium copper electrodes superscript:4. All raw materials undergo strict incoming inspection, including material composition testing, conductivity verification and high-temperature resistance detection, to ensure stable performance (conductivity ≥85% IACS for CrZrCu, continuous use temperature up to 500℃) and lay a solid foundation for long-term stable operation. We also offer customized material options according to customer welding needs, such as tungsten-copper alloy for high-temperature nut welding scenarios — leveraging the material’s high-temperature resistance to protect the positioning cavity from deformation and wear.
Our Nut Lower Electrode Cap adopts an integrated manufacturing process of cold extrusion forming, high-precision CNC turning, professional heat treatment and fine surface polishing. The advanced cold extrusion technology retains the original hardness and structural integrity of the material, ensuring the electrode cap’s resistance to deformation and fracture under high-pressure nut welding conditions, especially for the positioning cavity which bears concentrated stress and high temperature during welding. The inner positioning cavity is precision-machined according to standard nut specifications (M3-M12), with a high finish (Ra≤0.2μm) and smooth edges to avoid edge discharge, concentrate current distribution and prevent welding spatter, ensuring neat and beautiful welding seams. Strict tolerance control (±0.005~±0.01mm) is implemented throughout the production process, covering key dimensions such as inner diameter (10~20mm for standard models), outer diameter (12~25mm), overall length (15~30mm, including 13×20, 16×23 and other common specifications) and positioning cavity size (matching M3-M12 nuts). The inner taper is precisely processed to match standard lower electrode shanks, ensuring tight fit and stable current transmission. Every finished product undergoes comprehensive quality inspection, including dimensional accuracy testing, conductivity detection, wear resistance verification and surface defect inspection, to ensure zero defects before delivery. We also adopt advanced surface treatment technology to enhance the electrode cap’s anti-oxidation performance, extending its service life in harsh welding environments and preventing cavity oxidation and corrosion.
Core Product Advantages
1. Targeted Nut Positioning Design, Accurate & Stable
The integral nut positioning cavity is the core design feature of our Nut Lower Electrode Cap, specially optimized for nut resistance welding scenarios that require precise positioning and stable clamping. The positioning cavity is precision-machined according to common nut specifications (M3-M12), with a matching inner structure that perfectly fits the shape and size of nuts, ensuring accurate centering of nuts during welding, effectively avoiding misalignment, tilting or slipping — a key pain point of traditional lower electrode caps. Equipped with an optional retractable positioning spring superscript:1, it can flexibly adjust the positioning height, adapting to different nut thicknesses and ensuring full contact between the nut and the electrode surface, which further improves welding firmness. The standard inner taper (1/9.6) ensures perfect compatibility with mainstream lower electrode shanks, preventing loosening or poor contact during high-frequency welding vibration, and ensuring stable current transmission and welding performance. Additionally, the smooth inner cavity design reduces friction between the nut and the electrode, avoiding nut surface damage and ensuring the integrity of the workpiece.
2. Premium Copper Alloy, Excellent Conductivity & Heat Dissipation
Made of high-quality copper alloy materials, our Nut Lower Electrode Cap features superior electrical and thermal conductivity, which can quickly transfer current and heat to the nut welding contact point, concentrate current on the positioning cavity, reduce energy loss and avoid overheating of the electrode cap during long-term high-frequency nut welding operations. Chromium zirconium copper, as the preferred material, ensures stable conductivity and heat dissipation, with a recrystallization temperature of up to 500℃, maintaining high strength even under long-term high-temperature operation and achieving a balanced performance in conductivity, high-temperature resistance, wear resistance and hardness superscript:1. Dispersion copper is specially designed for galvanized plate nut welding, effectively avoiding electrode sticking and improving production efficiency superscript:4. The optional alumina copper material provides excellent high-temperature mechanical properties, with a softening temperature of up to 900℃, suitable for extreme working conditions. The material’s excellent thermal conductivity, combined with the optimized cavity structure, ensures rapid heat dissipation, preventing the electrode cap from softening or deforming due to overheating, which significantly extends its service life and reduces replacement frequency.
3. Ultra-High Dimensional Precision & Wide Compatibility
Adopting high-precision CNC machining and strict quality control system, all dimensions of the Nut Lower Electrode Cap meet international standards (GB, DIN, ISO, ANSI) and can be perfectly matched with standard resistance welding equipment, including fixed spot welders, suspended spot welders, robotic spot welders and automatic nut welding machines superscript:1 superscript:4. Standard models cover common specifications such as 13×20, 16×23 (outer diameter × length), with inner diameter ranging from 10~20mm, overall length from 15~30mm, and positioning cavity sizes matching M3-M12 nuts, fully adapting to different welding equipment and nut welding requirements. The strict tolerance control ensures high dimensional consistency, avoiding loose connection or misalignment during installation, and guaranteeing consistent welding quality. The electrode cap’s design is also compatible with various nut types, including hex nuts, round nuts, flange nuts and pointed nuts, as well as different workpiece materials such as steel plates, galvanized plates and high-strength steels, making it a versatile accessory for multiple industrial nut welding scenarios.
4. Strong Customization Capability for Diversified Needs
We support full non-standard customization according to customer-provided drawings, samples and actual nut welding working conditions. Whether it is the size specifications (inner diameter, outer diameter, overall length, positioning cavity size), material selection (chromium zirconium copper, dispersion copper, alumina copper, tungsten-copper alloy), inner taper design (non-standard tapers), the addition of positioning springs superscript:1, or surface treatment (silver plating, nickel plating), our professional R&D and machining team can provide targeted solutions. We can also customize the electrode cap according to the specific nut model (M3-M12 or non-standard nuts), welding equipment and workpiece material (galvanized plates, high-strength steels), meeting the diversified and personalized nut welding needs of different industries. For special nut welding scenarios such as high-temperature welding or large-size nut welding, we can optimize the material and structural design to ensure stable performance and long service life, including adjusting the positioning cavity size and adding reinforcement structures.
5. Durable and Wear-Resistant, High Cost-Effectiveness
The combination of premium copper alloy materials and advanced cold-forming manufacturing process greatly enhances the wear resistance, high-temperature oxidation resistance and impact resistance of the Nut Lower Electrode Cap. The high hardness (HRC 75-85 for CrZrCu) and wear-resistant surface ensure that the electrode cap can withstand long-term high-frequency nut welding operations without wear or deformation, extending the replacement cycle (typically supporting 1000-1200 welding points before regrinding or replacement) superscript:4. The optimized positioning cavity design enhances structural strength, avoiding fracture or deformation caused by concentrated stress and high temperature during welding — a common problem of ordinary nut lower electrode caps. Compared with ordinary copper electrode caps, our product has a longer service life (3-5 times that of pure copper electrode caps), reducing production downtime and maintenance costs. The excellent high-temperature resistance and anti-oxidation performance avoid frequent replacement caused by material aging and cavity oxidation, further improving cost-effectiveness. Its durable performance also ensures stable welding quality in mass nut production, reducing the rate of defective products and improving production efficiency, making it a cost-efficient choice for automated nut welding lines.
Wide Application Scenarios
Our Nut Lower Electrode Cap is widely used in various resistance welding equipment, highly compatible with mainstream fixed spot welders, suspended spot welders, robotic spot welders, automatic nut welding machines and welding jigs at home and abroad superscript:1 superscript:4. As a key lower matching component for nut welding, it is suitable for multiple industrial fields that require high-efficiency, high-standard nut resistance welding, especially for large-batch automated production lines, and its core application fields include:
-
Automotive manufacturing: Welding of various nuts (hex nuts, flange nuts, pointed nuts) on auto body components, chassis, engine brackets, interior parts and other components. The Nut Lower Electrode Cap’s precise positioning capability ensures accurate welding of nuts, avoiding nut deviation and workpiece damage, and ensuring product quality. It is widely used in automated welding lines of automotive manufacturers, compatible with robotic welding arms, and suitable for welding of nuts on high-strength steels, galvanized plates and thin aluminum alloy auto parts. The optional positioning spring design adapts to different nut heights, further improving welding stability and adapting to the high-speed production needs of the automotive industry.
-
Hardware & fastener industry: Precision welding of nuts on hardware tools, mechanical parts, fasteners and other products (M3-M12 common nut models). The Nut Lower Electrode Cap’s wear resistance, precise positioning and stable performance adapt to the harsh working environment of hardware processing, resisting the erosion of dust and welding spatter. It is suitable for welding of nuts on steel plates, galvanized plates and other materials, ensuring firm bonding and high product reliability, especially for large-batch nut production lines.
-
Sheet metal fabrication: Welding of nuts on sheet metal components, cabinets, brackets and other products. The precise positioning cavity ensures accurate centering of nuts, avoiding slipping during welding and ensuring neat welding seams. For small-size nuts and narrow operation spaces, the electrode cap’s compact design can better adapt to the working environment, and the smooth inner cavity prevents nut surface damage, which is in line with the characteristics of sheet metal nut welding operations.
-
General industrial manufacturing: High-standard nut resistance welding in scenarios such as electrical equipment, precision instruments, heavy machinery and railway accessories, especially for large-batch welding of nuts and nut-assembled workpieces. The Nut Lower Electrode Cap provides stable and reliable welding support, ensuring welding quality and production efficiency, especially for high-frequency, large-batch and precision nut welding operations. It is also applicable to high-temperature welding scenarios, expanding the application scope, and can be used in nut welding scenarios where traditional lower electrode caps cannot achieve precise positioning and stable clamping.
Why Choose Jiahe Nut Lower Electrode Cap?
With more than 10 years of deep cultivation in the field of automated welding equipment and accessories, Guangzhou Jiahe is a national high-tech enterprise with a complete R&D, production and quality control system. Our Nut Lower Electrode Cap inherits Jiahe's consistent quality concept, integrating professional design, premium materials and advanced technology. It is widely recognized by domestic and foreign customers for its reliable performance, precise dimensions, long service life and strong customization capability, establishing a good brand reputation in the global welding industry. We strictly control every link from raw material selection to production and inspection, ensuring that each electrode cap meets international standards (GB, DIN, ISO, ANSI) and customer requirements, especially for the precise processing of the positioning cavity which is the core of the product. Our material selection fully considers the characteristics of different welding workpieces and environments, providing targeted solutions for galvanized plate, high-strength steel and large-batch nut welding needs, and optimizing for the unique advantages of nut lower electrode caps in precise positioning and stable clamping.
We provide one-stop after-sales service and technical support, responding quickly to customer needs such as product consultation, customization scheme design, installation guidance and after-sales maintenance. We are committed to becoming a reliable partner in the field of automatic welding, providing customers with cost-effective Nut Lower Electrode Cap solutions and boosting the stability and efficiency of automated nut welding lines, whether for standard nut welding scenarios or special customization needs (such as material optimization or positioning cavity adjustment).
