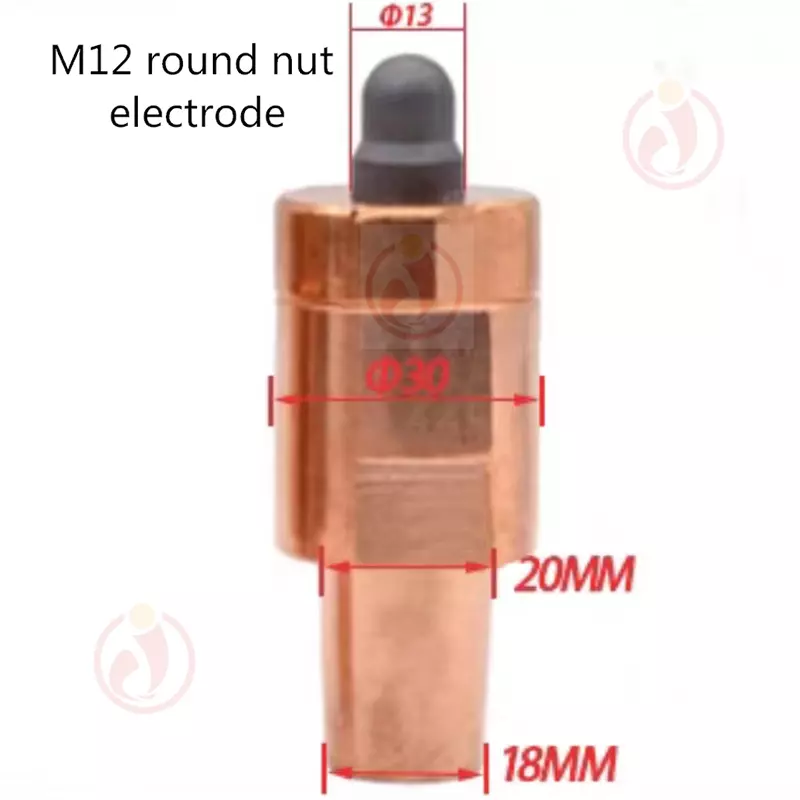

M12 Round Nut Electrode | High-Precision Welding Electrode for Round Nut
Product Overview
Guangzhou Jiahe Automation Equipment Co., Ltd. M12 Round Nut Electrode is a professional precision resistance welding accessory, specially designed for the efficient and stable welding of M12 round nuts in automated production lines. It integrates targeted structural design, premium alloy materials and advanced machining technology, aiming to solve the common problems of nut misalignment, unstable welding quality and low efficiency in traditional nut welding processes. As a key product in our nut welding electrode series, this electrode is independently R&D and manufactured, perfectly matching M12 round nut specifications, and delivering consistent, high-strength and neat welding results for large-volume industrial manufacturing scenarios.
Tailored for M12 round nut welding, our electrode features a precision-machined positioning structure that ensures accurate centering of the M12 round nut during welding, avoiding deviation and ensuring firm bonding between the nut and the workpiece. It is fully compatible with mainstream projection welding, spot welding and nut welding equipment at home and abroad, and is widely used in high-volume production fields such as automotive manufacturing, hardware processing and sheet metal fabrication. With excellent electrical conductivity, superior wear resistance, strict dimensional accuracy and long service life, it has become the preferred choice for M12 round nut automated welding, helping customers improve production efficiency and reduce defective product rates.
Premium Material & Advanced Manufacturing Process
Adhering to the production principle of "Materials as the foundation, technology as the core, and quality as the life", we select high-performance alloy materials for our M12 Round Nut Electrode, mainly including chromium zirconium copper (CrZrCu) and RWMA Class 2 (C18200) copper-chromium alloy — materials highly recommended for high-volume, high-frequency nut welding operations, especially suitable for welding M12 round nuts with hot or cold rolled steels, galvanized and coated materials[7]. All raw materials undergo strict incoming inspection, including purity testing and performance verification, to ensure stable electrical conductivity, strong heat resistance and excellent mechanical properties, laying a solid foundation for the electrode's long-term stable operation.
Our M12 Round Nut Electrode adopts an integrated manufacturing process of cold extrusion forming, high-precision CNC machining, professional heat treatment and fine surface polishing. We adopt advanced cold-forming technology that retains the original hardness of the material, ensuring the overall structural integrity and high structural strength of the electrode, effectively avoiding fracture, deformation or wear under high-frequency welding pressure and high-temperature working conditions[3]. The positioning part of the electrode is precisely machined according to M12 round nut specifications, with a pin diameter that can be customized in 0.2mm increments to match different nut inner hole sizes[5], ensuring tight fit and accurate centering. The welding surface is polished to a high finish, ensuring uniform current transmission, preventing welding spatter and ensuring neat welding seams. Strict tolerance control (±0.005~±0.01mm) is implemented throughout the production process[6], and every finished product undergoes comprehensive quality inspection, including dimensional accuracy testing, conductivity detection, wear resistance verification and surface defect inspection, to ensure zero defects before delivery.
Core Product Advantages
1. Precise Positioning Design for M12 Round Nut
The electrode is specially designed for M12 round nut specifications, with a precision positioning pin and matching inner cavity structure that perfectly fits the M12 round nut's size and shape[5]. This design ensures accurate centering of the nut during welding, effectively avoiding misalignment, tilting or slipping, and ensuring that the welding point is evenly stressed. It solves the problem of unstable welding quality caused by nut deviation in traditional welding, and greatly improves the qualification rate of welded products, especially suitable for high-standard automated production lines.
2. Excellent Conductivity & Efficient Heat Dissipation
Made of high-performance copper alloy materials, the M12 Round Nut Electrode features superior electrical and thermal conductivity, which can quickly transfer current and heat to the welding contact point, reduce energy loss and avoid overheating of the electrode during long-term high-frequency welding operations[7]. Some models are equipped with built-in water cooling channels, which further improves heat dissipation efficiency, prolongs the service life of the electrode, and enables it to outperform cast or forged electrodes with similar structures in terms of durability and stability.
3. Ultra-High Dimensional Precision & Stable Assembly
Adopting high-precision CNC machining and strict quality control system, all dimensions of the M12 Round Nut Electrode (including overall length, pin diameter, positioning cavity size and taper) meet international standards and can be perfectly matched with standard welding equipment (such as HD size 2 electrode holders via taper fit)[7]. The pin diameter for M12 nuts can be customized in 0.2mm increments, ranging from 12.0mm to 14.6mm, to adapt to different nut inner hole requirements[5]. High dimensional consistency ensures stable assembly with welding equipment, avoids loose connection or misalignment during welding, and guarantees consistent welding quality, fully adapting to high-speed automated welding production lines.
4. Strong Customization Capability for Diversified Needs
We support full non-standard customization according to customer-provided drawings, samples and actual welding working conditions. Whether it is the pin diameter (customizable in 0.2mm increments for M12 nuts), overall length, positioning cavity size, or the addition of water cooling channels, our professional R&D and machining team can provide targeted solutions[5]. We can also customize the electrode according to the specific M12 round nut model, welding equipment and workpiece materials, meeting the diversified and personalized welding needs of different industries.
5. Long Service Life & High Cost-Effectiveness
The combination of premium alloy materials and advanced cold-forming manufacturing process greatly enhances the wear resistance, high-temperature oxidation resistance and impact resistance of the M12 Round Nut Electrode[3]. It is not easy to deform, wear or damage under long-term high-frequency welding operations, effectively extending the replacement cycle. This not only reduces production downtime and maintenance costs, but also lowers the overall production cost for customers, achieving high cost-effectiveness. Its durable performance also ensures stable welding quality in mass production, reducing the rate of defective products and improving production efficiency.
Wide Application Scenarios
Our M12 Round Nut Electrode is widely used in various automated resistance welding equipment, highly compatible with mainstream nut welding machines at home and abroad. It is specially designed for the welding of M12 round nuts, and its core application fields include:
-
Automotive manufacturing: Welding of M12 round nuts on auto body components, chassis, engine brackets and other parts, suitable for high-volume automated production lines[7], ensuring firm bonding and consistent quality.
-
Hardware & fastener industry: Precision welding of M12 round nuts on hardware tools, mechanical parts, fasteners and other products, improving welding efficiency and product reliability.
-
Sheet metal fabrication: Welding of M12 round nuts on sheet metal components, cabinets, brackets and other products, adapting to the high-precision requirements of sheet metal welding.
-
General industrial manufacturing: High-standard resistance welding of M12 round nuts in high-volume production scenarios, such as electrical equipment, construction machinery and other fields, ensuring stable welding performance and high weld strength.
Why Choose Jiahe M12 Round Nut Electrode?
With more than 10 years of deep cultivation in the field of automated welding equipment and accessories, Guangzhou Jiahe is a national high-tech enterprise with a complete R&D, production and quality control system. Our M12 Round Nut Electrode inherits Jiahe's consistent quality concept, integrating professional design, premium materials and advanced technology. It is widely recognized by domestic and foreign customers for its reliable performance, precise dimensions, long service life and strong customization capability, establishing a good brand reputation in the global welding industry.
We provide one-stop after-sales service and technical support, responding quickly to customer needs such as product consultation, customization scheme design, installation guidance and after-sales maintenance. We are committed to becoming a reliable partner in the field of automated welding, providing customers with cost-effective M12 Round Nut Electrode solutions and boosting the stability and efficiency of automated production lines.
