Flat Electrode Cap | High-Precision Planar Welding Accessory for Resistance Welding
Product Overview
Guangzhou Jiahe Automation Equipment Co., Ltd. Flat Electrode Cap is a professional core consumable accessory for resistance welding systems, exclusively designed for efficient, stable and high-quality welding operations in automated production lines. As a critical component that fits tightly over the electrode shank superscript:1, our flat electrode cap integrates an optimized planar structure design, premium copper alloy materials and advanced precision machining technology, aiming to solve common pain points such as uneven current distribution, easy wear, poor heat dissipation and unstable welding quality in traditional electrode caps during high-frequency welding. Distinguished from round or round-flat electrode caps, our flat model features a smooth, seamless planar contact surface that provides a larger, more uniform contact area, ensuring consistent pressure application and current conduction, delivering neat, firm and consistent welding joints for large-volume industrial manufacturing scenarios. It is widely compatible with fixed spot welders, suspended spot welders and robotic spot welders superscript:1 superscript:3, making it ideal for automotive manufacturing, home appliance production, hardware processing and other industries that require high-efficiency, high-standard resistance welding, especially for workpieces that need a large, flat contact area to avoid local overheating, workpiece burns and uneven welding seams.
Our flat electrode cap is engineered with a precision-machined planar contact surface (standard flat size 4-15mm in length/width, customizable flat thickness 1-3mm) and a matching inner taper design (1/9.6 standard taper) superscript:1, which perfectly fits electrode shanks of various specifications and ensures tight connection without loosening during high-frequency welding vibration. Made of high-performance copper alloy materials, it combines excellent electrical conductivity, superior high-temperature resistance and strong wear resistance, effectively withstanding the harsh working environment of high heat, high pressure and welding spatter in resistance welding processes. As a cost-effective welding consumable, it typically supports 1000-1200 welding points before needing regrinding or replacement superscript:1, balancing performance and economy for our global customers. Each flat electrode cap undergoes strict quality inspection before leaving the factory, ensuring consistent dimensional accuracy and stable performance, which is crucial for maintaining welding quality in mass production. The smooth planar design ensures uniform heat distribution during welding, avoids workpiece burns or uneven welding seams, and is easy to clean after use, reducing maintenance time and production downtime — a key advantage of planar electrodes in low-current density, high-frequency or long-time welding operations superscript:2.
Premium Material & Advanced Manufacturing Process
Adhering to the production principle of "Materials as the foundation, technology as the core, and quality as the life", we select high-performance copper alloy materials for our Flat Electrode Cap, mainly including chromium zirconium copper (CrZrCu, CuCrZr), dispersion-strengthened copper (dispersion copper), and optional alumina copper (CuAl₂O₃) for special working conditions superscript:1. Chromium zirconium copper is the preferred material for most welding scenarios, as adding trace amounts of chromium and zirconium to pure copper significantly improves its hardness and high-temperature softening point while maintaining excellent electrical conductivity superscript:1. Dispersion copper is specially designed for galvanized plate welding, effectively solving the problem of electrode sticking caused by chemical reactions between chromium and zinc in traditional chromium zirconium copper electrodes superscript:1. All raw materials undergo strict incoming inspection, including material composition testing, conductivity verification and high-temperature resistance detection, to ensure stable performance (conductivity ≥85% IACS for CrZrCu, continuous use temperature up to 500℃) and lay a solid foundation for long-term stable operation. We also offer customized material options according to customer welding needs, such as tungsten-copper alloy for high-temperature welding scenarios — leveraging the material’s high-temperature resistance to protect the planar contact surface from deformation superscript:2.
Our Flat Electrode Cap adopts an integrated manufacturing process of cold extrusion forming, high-precision CNC turning, professional heat treatment and fine surface polishing. The advanced cold extrusion technology retains the original hardness and structural integrity of the material, ensuring the electrode cap’s resistance to deformation and fracture under high-pressure welding conditions. The planar contact surface is precision-machined to a high finish (Ra≤0.2μm), with smooth edges to avoid edge discharge, concentrate current distribution and prevent welding spatter, ensuring neat and beautiful welding seams — a critical feature for planar electrodes to avoid current concentration issues in high-current load environments superscript:2. Strict tolerance control (±0.005~±0.01mm) is implemented throughout the production process, covering key dimensions such as inner diameter (10~20mm for standard models), outer diameter (12~25mm) and overall length (15~30mm, including 13×20, 16×23 and other common specifications). The inner taper is precisely processed to match standard electrode shanks, ensuring tight fit and stable current transmission. Every finished product undergoes comprehensive quality inspection, including dimensional accuracy testing, conductivity detection, wear resistance verification and surface defect inspection, to ensure zero defects before delivery. We also adopt advanced surface treatment technology to enhance the electrode cap’s anti-oxidation performance, extending its service life in harsh welding environments.
Core Product Advantages
1. Optimized Planar Design, Superior Welding Stability
The integral planar contact surface is the core design feature of our electrode cap, specially optimized for resistance welding scenarios that require large contact area, uniform current conduction and pressure application. The smooth, seamless planar structure provides a larger contact area compared to round or round-flat electrode caps, ensuring that current and pressure are evenly distributed across the welding contact point, avoiding local overheating, workpiece burns or uneven welding seams — common problems with non-planar electrode caps. The planar design also minimizes welding spatter adhesion, making it easy to clean and maintain, which is essential for maintaining consistent welding quality in high-speed automated production lines. The standard inner taper (1/9.6) ensures perfect compatibility with mainstream electrode shanks, preventing loosening or poor contact during high-frequency welding vibration, and ensuring stable current transmission and welding performance superscript:1. Additionally, the planar shape provides better stress distribution, reducing the risk of deformation or breakage under high-pressure welding conditions, further enhancing operational stability — a key benefit for long-time welding operations superscript:2.
2. Premium Copper Alloy, Excellent Conductivity & Heat Dissipation
Made of high-quality copper alloy materials, our Flat Electrode Cap features superior electrical and thermal conductivity, which can quickly transfer current and heat to the welding contact point, reduce energy loss and avoid overheating of the electrode cap during long-term high-frequency welding operations. Chromium zirconium copper, as the preferred material, ensures stable conductivity and heat dissipation, with a recrystallization temperature of up to 500℃, maintaining high strength even under long-term high-temperature operation. Dispersion copper is specially designed for galvanized plate welding, effectively avoiding electrode sticking and improving production efficiency superscript:1. The optional alumina copper material provides excellent high-temperature mechanical properties, with a softening temperature of up to 900℃, suitable for extreme working conditions. The material’s excellent thermal conductivity, combined with the large planar contact area, ensures rapid heat dissipation — a key advantage of planar electrodes — preventing the electrode cap from softening or deforming due to overheating, which significantly extends its service life and reduces replacement frequency superscript:2.
3. Ultra-High Dimensional Precision & Wide Compatibility

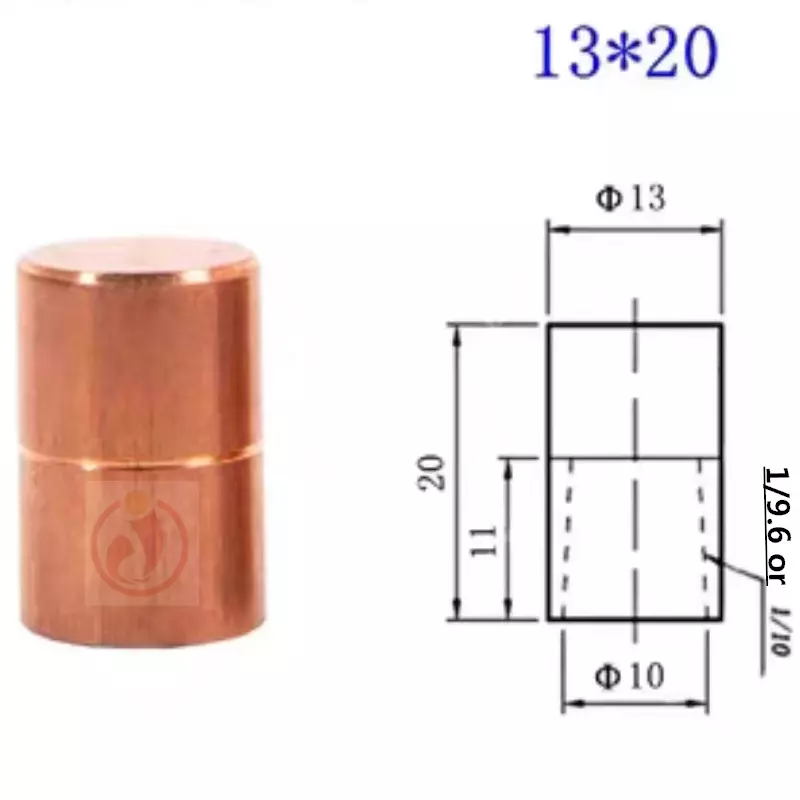

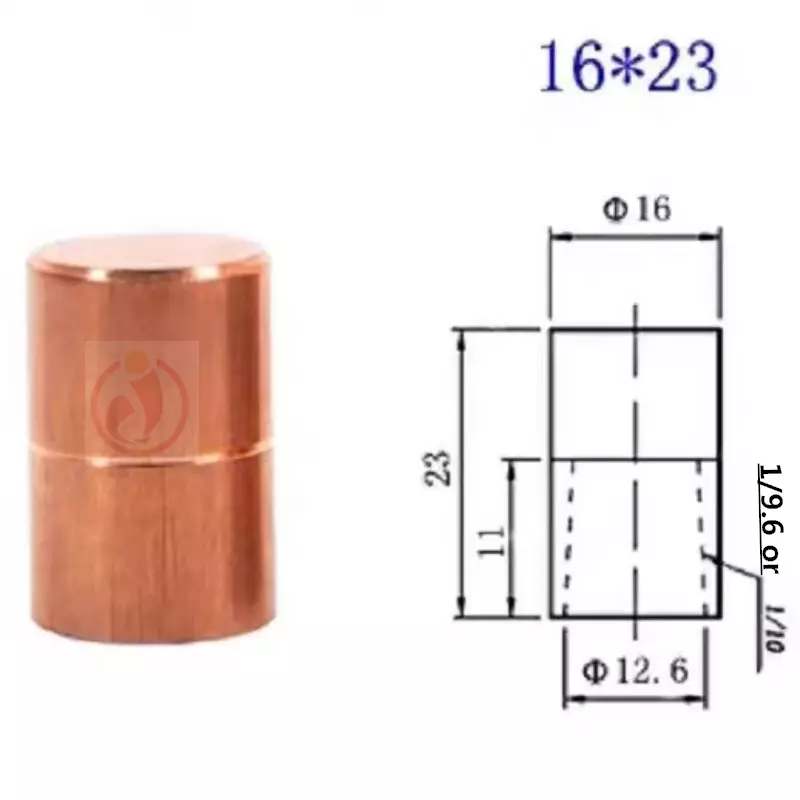

Adopting high-precision CNC machining and strict quality control system, all dimensions of the Flat Electrode Cap meet international standards (GB, DIN, ISO, ANSI) and can be perfectly matched with standard resistance welding equipment, including fixed spot welders, suspended spot welders and robotic spot welders superscript:1 superscript:3. Standard models cover common specifications such as 13×20, 16×23 (outer diameter × length), with inner diameter ranging from 10~20mm, overall length from 15~30mm, flat size from 4~15mm (length/width) and flat thickness from 1~3mm, fully adapting to different welding equipment and workpiece requirements. The strict tolerance control ensures high dimensional consistency, avoiding loose connection or misalignment during installation, and guaranteeing consistent welding quality. The electrode cap’s design is also compatible with various welding workpieces, including steel plates, galvanized plates, aluminum alloys and high-strength steels, making it a versatile accessory for multiple industrial scenarios, especially for workpieces that need a large planar contact area to ensure welding firmness and avoid local damage.
4. Strong Customization Capability for Diversified Needs
We support full non-standard customization according to customer-provided drawings, samples and actual welding working conditions. Whether it is the size specifications (inner diameter, outer diameter, overall length, flat size, flat thickness), material selection (chromium zirconium copper, dispersion copper, alumina copper, tungsten-copper alloy), inner taper design (non-standard tapers), or surface treatment (silver plating, nickel plating), our professional R&D and machining team can provide targeted solutions. We can also customize the electrode cap according to the specific model of welding equipment, workpiece material (galvanized plates, high-strength steels, aluminum alloys) and welding frequency, meeting the diversified and personalized needs of different industries. For special welding scenarios such as high-temperature or high-pressure welding, we can optimize the material and structural design to ensure stable performance and long service life, including adjusting the planar contact surface size to adapt to low-current density or high-frequency welding requirements superscript:2.
5. Durable and Wear-Resistant, High Cost-Effectiveness
The combination of premium copper alloy materials and advanced cold-forming manufacturing process greatly enhances the wear resistance, high-temperature oxidation resistance and impact resistance of the Flat Electrode Cap. The high hardness (HRC 75-85 for CrZrCu) and wear-resistant surface ensure that the electrode cap can withstand long-term high-frequency welding operations without wear or deformation, extending the replacement cycle (typically supporting 1000-1200 welding points before regrinding or replacement) superscript:1. Compared with ordinary copper electrode caps, our product has a longer service life (3-5 times that of pure copper electrode caps), reducing production downtime and maintenance costs. The excellent high-temperature resistance and anti-oxidation performance avoid frequent replacement caused by material aging, further improving cost-effectiveness. Its durable performance also ensures stable welding quality in mass production, reducing the rate of defective products and improving production efficiency, making it a cost-efficient choice for automated welding lines — especially for long-time, high-frequency welding operations where planar electrode advantages are fully utilized superscript:2.
Wide Application Scenarios
Our Flat Electrode Cap is widely used in various resistance welding equipment, highly compatible with mainstream fixed spot welders, suspended spot welders, robotic spot welders and welding jigs at home and abroad superscript:1 superscript:3. As a key welding consumable, it is suitable for multiple industrial fields that require high-efficiency, high-standard resistance welding, especially for workpieces that need a large planar contact area to ensure welding quality, and its core application fields include:
-
Automotive manufacturing: Welding of auto body components, chassis, engine brackets, door hinges and other parts. The flat electrode cap’s large planar contact area and uniform current distribution ensure neat, firm welding seams, avoiding workpiece damage and ensuring product quality. It is widely used in automated welding lines of automotive manufacturers, compatible with robotic welding arms, and suitable for welding of high-strength steels, galvanized plates and aluminum alloy auto parts. The durable performance also reduces replacement frequency, adapting to the high-speed production needs of the automotive industry.
-
Home appliance industry: Welding of metal components for refrigerators, washing machines, air conditioners and other home appliances. The smooth planar contact surface ensures beautiful welding seams, eliminating the need for subsequent polishing, improving production efficiency and reducing costs. It is suitable for large-batch production lines of home appliances, with excellent compatibility with automatic welding equipment, ensuring consistent welding quality and product appearance.
-
Hardware & sheet metal fabrication: Precision welding of hardware tools, sheet metal components, cabinets and brackets. The flat electrode cap’s wear resistance, large planar contact area and stable performance adapt to the harsh working environment of hardware processing, resisting the erosion of dust and welding spatter. It is suitable for welding of steel plates, galvanized plates and other materials, ensuring firm bonding and high product reliability — especially for low-current density welding scenarios where planar electrodes excel superscript:2.
-
General industrial manufacturing: High-standard resistance welding in scenarios such as electronic equipment, precision instruments, heavy machinery and railway accessories. The Flat Electrode Cap provides stable and reliable welding support, ensuring welding quality and production efficiency, especially for high-frequency, large-batch and long-time welding operations and workpieces that require large planar contact area to avoid local overheating. It is also applicable to high-temperature welding scenarios, expanding the application scope, and can be used in low-current density applications where uniform heat distribution is critical superscript:2.
Why Choose Jiahe Flat Electrode Cap?
With more than 10 years of deep cultivation in the field of automated welding equipment and accessories, Guangzhou Jiahe is a national high-tech enterprise with a complete R&D, production and quality control system. Our Flat Electrode Cap inherits Jiahe's consistent quality concept, integrating professional design, premium materials and advanced technology. It is widely recognized by domestic and foreign customers for its reliable performance, precise dimensions, long service life and strong customization capability, establishing a good brand reputation in the global welding industry. We strictly control every link from raw material selection to production and inspection, ensuring that each electrode cap meets international standards (GB, DIN, ISO, ANSI) and customer requirements, especially for the precise processing of the planar contact surface and inner taper which are the core of the product. Our material selection fully considers the characteristics of different welding workpieces and environments, providing targeted solutions for galvanized plate, high-strength steel and other special welding needs, and optimizing for the unique advantages of planar electrodes in long-time, low-current density welding superscript:2.
We provide one-stop after-sales service and technical support, responding quickly to customer needs such as product consultation, customization scheme design, installation guidance and after-sales maintenance. We are committed to becoming a reliable partner in the field of automatic welding, providing customers with cost-effective Flat Electrode Cap solutions and boosting the stability and efficiency of automated production lines, whether for standard welding scenarios or special customization needs (such as material optimization or size adjustment).
