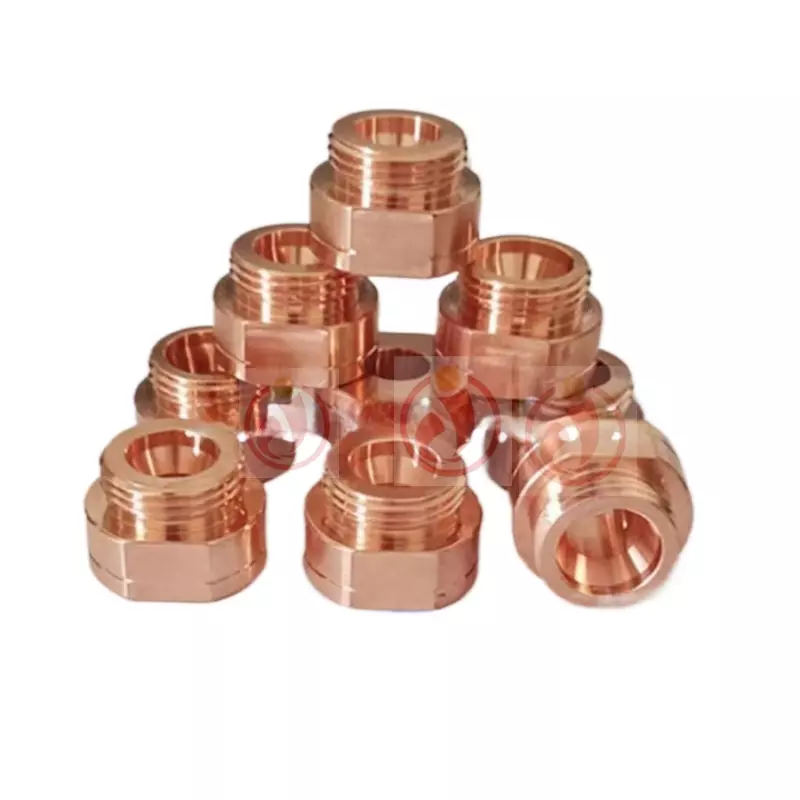

Nut Electrode Cap | High-Precision Resistance Welding Consumable for Nut Welding
Product Overview
Guangzhou Jiahe Automation Equipment Co., Ltd. Nut Electrode Cap is a professional core consumable accessory designed exclusively for nut resistance welding systems, widely used as a key component for positioning, clamping and current conduction in automated nut welding lines. As an essential part of nut welding equipment, it is sleeved on the electrode shank superscript:1, integrating precision positioning structure, high-performance copper alloy materials and advanced machining technology to solve common pain points in high-volume nut welding, such as nut misalignment, unstable current transmission, electrode sticking, poor welding firmness and short service life. Our Nut Electrode Cap is available in various types (P, D, E, F types) superscript:1 to match different welding workpieces, thicknesses and material requirements, perfectly fitting common nut specifications (M3-M12) and compatible with mainstream resistance welding equipment, including fixed spot welders, suspended spot welders, robotic spot welders and automatic nut welding machines superscript:1 superscript:3. It is widely applied in automotive manufacturing, hardware processing, sheet metal fabrication, fastener production and other industries that require high-efficiency, high-standard nut resistance welding, especially suitable for large-batch automated production lines.
Engineered with a precision-machined nut positioning cavity and a standard inner taper (1/9.6) superscript:1, our Nut Electrode Cap ensures tight connection with electrode shanks, avoiding loosening during high-frequency welding vibration. Equipped with an optional retractable positioning spring superscript:2, it enables flexible up-and-down movement of the positioning pin, adapting to the clamping and positioning needs of different nut heights and ensuring full contact between the nut and the electrode surface. The positioning pin is made of wear-resistant and high-temperature-resistant insulating KCF material superscript:2, effectively preventing current shunting and avoiding breakage compared with brittle ceramic or silicon nitride materials. As a cost-effective welding consumable, it typically supports 1000-1200 welding points before needing regrinding or replacement superscript:1 superscript:3, balancing performance and economy for global customers. Each Nut Electrode Cap undergoes strict quality inspection before leaving the factory, ensuring consistent dimensional accuracy and stable performance, which is crucial for maintaining welding quality in mass nut welding production.
Premium Material & Advanced Manufacturing Process
Adhering to the production principle of "Materials as the foundation, technology as the core, and quality as the life", we select high-performance copper alloy materials for our Nut Electrode Cap, mainly including chromium zirconium copper (CrZrCu, CuCrZr), dispersion-strengthened copper (dispersion copper), and optional alumina copper (CuAl₂O₃) for special working conditions superscript:1 superscript:3. Chromium zirconium copper is the preferred material for most nut welding scenarios, as adding trace amounts of chromium and zirconium to pure copper significantly improves its hardness and high-temperature softening point while maintaining excellent electrical conductivity, achieving a perfect balance of four key performance indicators: excellent electrical conductivity, high-temperature mechanical properties, wear resistance, and high hardness and strength superscript:2. Dispersion copper is specially designed for galvanized plate nut welding, effectively solving the problem of electrode sticking caused by chemical reactions between chromium and zinc in traditional chromium zirconium copper electrodes superscript:1 superscript:3. All raw materials undergo strict incoming inspection, including material composition testing, conductivity verification and high-temperature resistance detection, to ensure stable performance (conductivity ≥85% IACS for CrZrCu, continuous use temperature up to 500℃) and lay a solid foundation for long-term stable operation. We also offer customized material options such as tungsten-copper alloy for high-temperature nut welding scenarios, leveraging its high-temperature resistance to protect the positioning cavity from deformation and wear.
Our Nut Electrode Cap adopts an integrated manufacturing process of cold extrusion forming, high-precision CNC turning, professional heat treatment and fine surface polishing. The advanced cold extrusion technology retains the original hardness and structural integrity of the material, ensuring the electrode cap’s resistance to deformation and fracture under high-pressure nut welding conditions. The inner positioning cavity is precision-machined according to standard nut specifications (M3-M12), with a high finish (Ra≤0.2μm) and smooth edges to avoid edge discharge, concentrate current distribution and prevent welding spatter, ensuring neat and beautiful welding seams. Strict tolerance control (±0.005~±0.01mm) is implemented throughout the production process, covering key dimensions such as inner diameter (10~20mm for standard models), outer diameter (12~25mm), overall length (15~30mm, including 13×20, 16×23 and other common specifications) and positioning cavity size. The inner taper is precisely processed to match standard electrode shanks, ensuring tight fit and stable current transmission. Every finished product undergoes comprehensive quality inspection, including dimensional accuracy testing, conductivity detection, wear resistance verification and surface defect inspection, to ensure zero defects before delivery. Advanced surface treatment technology is also adopted to enhance anti-oxidation performance, extending service life in harsh welding environments.
Core Product Advantages
1. Precise Positioning & Stable Clamping
The integral nut positioning cavity is the core design feature of our Nut Electrode Cap, precision-machined according to common nut specifications (M3-M12) and available in various types (P, D, E, F types) superscript:1 to match different welding needs. The matching inner structure perfectly fits the shape and size of nuts, ensuring accurate centering during welding and effectively avoiding misalignment, tilting or slipping — a key pain point of traditional electrode caps. Equipped with an optional retractable positioning spring superscript:2, it flexibly adjusts positioning height to adapt to different nut thicknesses, ensuring full contact between the nut and the electrode surface and improving welding firmness. The standard inner taper (1/9.6) ensures perfect compatibility with mainstream electrode shanks, preventing loosening or poor contact during high-frequency welding vibration. The KCF material positioning pin superscript:2 avoids current shunting and breakage, further enhancing welding stability.
2. Premium Materials & Excellent Performance
Made of high-quality copper alloy materials, our Nut Electrode Cap features superior electrical and thermal conductivity, quickly transferring current and heat to the welding contact point, reducing energy loss and avoiding overheating during long-term high-frequency operation. Chromium zirconium copper ensures stable conductivity and heat dissipation, with a recrystallization temperature of up to 500℃, maintaining high strength under long-term high-temperature operation superscript:1 superscript:3. Dispersion copper solves the problem of electrode sticking in galvanized plate welding, improving production efficiency superscript:1 superscript:3. The optional alumina copper material provides excellent high-temperature mechanical properties (softening temperature up to 900℃) for extreme working conditions. The combination of premium materials and scientific design ensures excellent wear resistance, high-temperature oxidation resistance and impact resistance, laying a solid foundation for long service life.
3. High Dimensional Precision & Wide Compatibility
Adopting high-precision CNC machining and strict quality control, all dimensions of the Nut Electrode Cap meet international standards (GB, DIN, ISO, ANSI) and perfectly match standard resistance welding equipment, including fixed spot welders, suspended spot welders, robotic spot welders and automatic nut welding machines superscript:1 superscript:3. Standard models cover common specifications such as 13×20, 16×23 (outer diameter × length), with inner diameter 10~20mm, overall length 15~30mm, and positioning cavity sizes matching M3-M12 nuts. Strict tolerance control ensures high dimensional consistency, avoiding loose connection or misalignment during installation. It is compatible with various nut types (hex nuts, round nuts, flange nuts, pointed nuts) and workpiece materials (steel plates, galvanized plates, high-strength steels), making it a versatile accessory for multiple industrial scenarios.
4. Strong Customization Capability
We support full non-standard customization according to customer-provided drawings, samples and actual welding conditions. Customizable options include size specifications (inner diameter, outer diameter, overall length, positioning cavity size), material selection (chromium zirconium copper, dispersion copper, alumina copper, tungsten-copper alloy), inner taper design (non-standard tapers), type selection (P, D, E, F types) superscript:1, addition of positioning springs superscript:2, surface treatment (silver plating, nickel plating) and positioning pin material adjustment. We can customize the electrode cap according to specific nut models, welding equipment and workpiece materials, meeting diversified and personalized needs of different industries. For special scenarios such as high-temperature welding or large-size nut welding, we optimize material and structural design to ensure stable performance.
5. Durable & Cost-Effective
The combination of premium copper alloy materials and advanced cold-forming technology greatly enhances the wear resistance and service life of the Nut Electrode Cap. Chromium zirconium copper has high hardness (HRC 75-85) and wear resistance, 3-5 times that of pure copper electrode caps, extending the replacement cycle (typically 1000-1200 welding points before regrinding or replacement) superscript:1 superscript:3. The optimized positioning cavity design enhances structural strength, avoiding fracture or deformation caused by concentrated stress and high temperature. Excellent high-temperature resistance and anti-oxidation performance avoid frequent replacement due to material aging, reducing production downtime and maintenance costs. Its stable performance ensures consistent welding quality in mass production, reducing defective product rates and improving production efficiency, achieving high cost-effectiveness.
Wide Application Scenarios
Our Nut Electrode Cap is widely used in various resistance welding equipment, highly compatible with mainstream fixed spot welders, suspended spot welders, robotic spot welders, automatic nut welding machines and welding jigs at home and abroad superscript:1 superscript:3. As a key component for nut welding, it is suitable for multiple industrial fields requiring high-efficiency, high-standard nut resistance welding, especially large-batch automated production lines. Core application fields include:
-
Automotive manufacturing: Welding of various nuts (hex nuts, flange nuts, pointed nuts) on auto body components, chassis, engine brackets and interior parts. Its precise positioning ensures accurate nut welding, avoiding deviation and workpiece damage, and is compatible with robotic welding arms. It is suitable for welding nuts on high-strength steels, galvanized plates and thin aluminum alloy auto parts, adapting to the high-speed production needs of the automotive industry.
-
Hardware & fastener industry: Precision welding of nuts (M3-M12) on hardware tools, mechanical parts and fasteners. Its wear resistance and stable performance adapt to the harsh working environment of hardware processing, resisting dust and welding spatter. It ensures firm bonding for nuts on steel plates, galvanized plates and other materials, especially suitable for large-batch nut production lines.
-
Sheet metal fabrication: Welding of nuts on sheet metal components, cabinets and brackets. The precise positioning cavity avoids nut slipping during welding, ensuring neat welding seams. Its compact design adapts to small-size nuts and narrow operation spaces, and the smooth inner cavity prevents nut surface damage.
-
General industrial manufacturing: High-standard nut resistance welding in electrical equipment, precision instruments, heavy machinery and railway accessories, especially for large-batch welding of nuts and nut-assembled workpieces. It provides stable support for high-frequency, precision nut welding, expanding application scope to high-temperature scenarios and solving positioning problems of traditional electrode caps.
Why Choose Jiahe Nut Electrode Cap?
With more than 10 years of deep cultivation in the field of automated welding equipment and accessories, Guangzhou Jiahe is a national high-tech enterprise with a complete R&D, production and quality control system. Our Nut Electrode Cap inherits Jiahe's consistent quality concept, integrating professional design, premium materials and advanced technology. It is widely recognized by domestic and foreign customers for its reliable performance, precise dimensions, long service life and strong customization capability, establishing a good brand reputation in the global welding industry. We strictly control every link from raw material selection to production and inspection, ensuring each electrode cap meets international standards and customer requirements, with targeted material selection for galvanized plates, high-strength steels and other special scenarios.
We provide one-stop after-sales service and technical support, responding quickly to customer needs such as product consultation, customization scheme design, installation guidance and after-sales maintenance. We are committed to becoming a reliable partner in the field of automatic welding, providing cost-effective Nut Electrode Cap solutions and boosting the stability and efficiency of automated nut welding lines, whether for standard scenarios or special customization needs.
