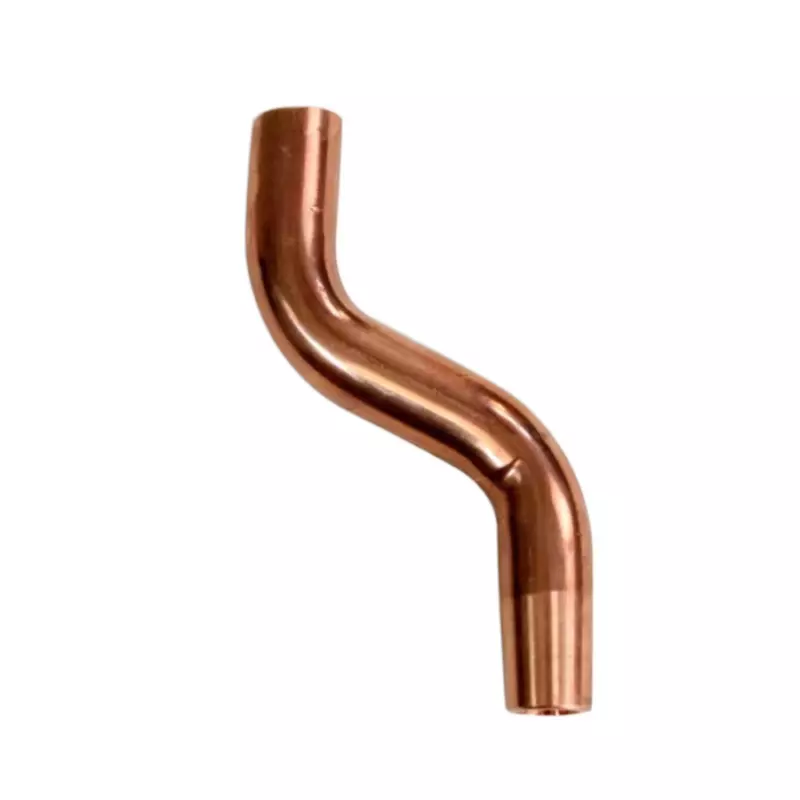

Flat-tip Bent Electrode | High-Precision Custom Welding Electrode
Product Overview
Guangzhou Jiahe Automation Equipment Co., Ltd. Flat-tip Bent Electrode is a high-precision, durable resistance welding accessory, innovatively combining the bent structure and flat welding head design. It is specifically engineered to solve the welding challenges of confined, hard-to-reach positions that standard straight electrodes cannot handle, while the flat tip design is tailored for scenarios requiring large contact areas and uniform welding pressure. As a core product in our special-shaped electrode series, this electrode is independently R&D and manufactured to deliver stable, high-strength and neat welding results for industrial manufacturing scenarios, perfectly adapting to the high-standard requirements of automated welding production lines.
Integrating premium alloy materials, advanced precision machining technology and customizable design, our Flat-tip Bent Electrode is fully compatible with mainstream spot welding, projection welding and seam welding equipment at home and abroad. Its unique flat tip design ensures larger contact area with workpieces, increasing heat production at the contact point and enhancing weld strength, while the bent structure breaks through the space limitation of welding positions. With excellent electrical conductivity, superior wear resistance, strict dimensional accuracy and long service life, it has become the preferred choice for high-end automated welding in automotive manufacturing, home appliance industry, hardware and sheet metal fabrication, and other key fields.
Premium Material & Advanced Manufacturing Process
Adhering to the production principle of "Materials as the foundation, technology as the core, and quality as the life", we select high-performance alloy materials for our Flat-tip Bent Electrode, mainly including chromium zirconium copper (CrZrCu) and RWMA Class 2 (C18200) copper-chromium alloy — materials highly recommended for high-volume, high-frequency welding operations, especially suitable for spot welding hot or cold rolled steels, galvanized and coated materials, as well as workpieces with dissimilar thicknesses. All raw materials undergo strict incoming inspection, including purity testing and performance verification, to ensure stable electrical conductivity, strong heat resistance and excellent mechanical properties.
Our Flat-tip Bent Electrode adopts an integrated manufacturing process of cold extrusion forming, high-precision CNC machining, professional heat treatment and fine surface polishing. We adopt the advanced cold-forming technology that keeps the original hardness of the material, ensuring the overall structural integrity and high structural strength of the electrode, effectively avoiding fracture, deformation or wear under high-frequency welding pressure and high-temperature working conditions. The bent part is precisely machined with customized angles (single bend or double bend) and offsets to adapt to different confined welding spaces, while the flat welding surface is polished to a high finish, ensuring uniform current transmission, preventing welding spatter and ensuring neat welding seams. Strict tolerance control is implemented throughout the production process, and every finished product undergoes comprehensive quality inspection, including dimensional accuracy testing, conductivity detection, wear resistance verification and surface defect inspection, to ensure zero defects before delivery.
Core Product Advantages
1. Integrated Bent & Flat-tip Design for Confined & Heavy-Duty Scenarios
The optimized bent structure is customized according to the actual welding space and workpiece shape, effectively breaking through the limitations of standard straight electrodes, and can easily reach narrow gaps, complex corners, flanges and other hard-to-reach positions[2][5]. The flat tip design provides a larger contact area with flat surfaces, which increases heat production at the contact point, produces higher weld strength, and is particularly suitable for welding tasks requiring joining materials with dissimilar thicknesses and larger sheet sections. This integrated design perfectly balances space adaptability and welding stability, making it ideal for both confined-space welding and heavy-duty industrial applications.
2. Excellent Conductivity & Efficient Heat Dissipation
Made of high-performance copper alloy materials, the Flat-tip Bent Electrode features superior electrical and thermal conductivity, which can quickly transfer current and heat, reduce energy loss and avoid overheating of the electrode during long-term high-frequency welding operations. Some models are equipped with built-in water cooling channels extending to the flat tip, which further improves heat dissipation efficiency, prolongs the service life of the electrode, and enables it to outperform cast or forged electrodes with similar structures in terms of durability.
3. Ultra-High Dimensional Precision & Stable Assembly
Adopting high-precision CNC machining and strict quality control system, all dimensions of the Flat-tip Bent Electrode (including overall length, outer diameter, flat tip size, bent angle, offset and taper) meet international standards and can be perfectly matched with standard welding equipment (such as 4RW, 5RW standard tapers). High dimensional consistency ensures stable assembly with welding equipment, avoids loose connection or misalignment during welding, and guarantees consistent welding quality, fully adapting to high-speed automated welding production lines. The flat tip’s smooth surface also reduces electrode wear and extends the service cycle.
4. Strong Customization Capability for Diversified Needs
We support full non-standard customization according to customer-provided drawings, samples and actual welding working conditions. Whether it is the bent angle (single bend or double bend), flat tip size (customizable from 3mm to 12mm), bent offset, overall length, or the thickness of the flat tip, our professional R&D and machining team can provide targeted solutions to meet the diversified and personalized welding needs of different industries and workpieces[1][5]. We can also customize the electrode according to the specific welding equipment and workpiece materials.
5. Long Service Life & High Cost-Effectiveness
The combination of premium alloy materials and advanced cold-forming manufacturing process greatly enhances the wear resistance, high-temperature oxidation resistance and impact resistance of the Flat-tip Bent Electrode. It is not easy to deform, wear or damage under long-term high-frequency welding operations, effectively extending the replacement cycle. This not only reduces production downtime and maintenance costs, but also lowers the overall production cost for customers, achieving high cost-effectiveness. Its durable performance also ensures stable welding quality in mass production, reducing the rate of defective products.
Wide Application Scenarios
Our Flat-tip Bent Electrode is widely used in various automated resistance welding equipment, highly compatible with mainstream welding machines at home and abroad. It is especially suitable for welding scenarios with confined spaces, large contact area requirements and high-quality welding standards, and its core application fields include:
-
Automotive manufacturing: Welding of auto body flanges, chassis components, sheet metal joints and other hard-to-reach positions, especially for welding workpieces with dissimilar thicknesses and flat-surface welding needs
-
Home appliance industry: Welding of metal parts for refrigerators, washing machines, air conditioners, such as shell flanges, pipeline joints and narrow-space internal components that require neat welding seams
-
Hardware & sheet metal fabrication: Precision welding of flat-surface workpieces, complex structural parts, small workpieces and narrow-space joints, suitable for heavy-duty welding tasks
-
General industrial manufacturing: High-standard resistance welding of special-position workpieces, high-volume production lines requiring stable welding performance, high weld strength and beautiful welding appearance
Why Choose Jiahe Flat-tip Bent Electrode?
With more than 10 years of deep cultivation in the field of automated welding equipment and accessories, Guangzhou Jiahe is a national high-tech enterprise with a complete R&D, production and quality control system. Our Flat-tip Bent Electrode inherits Jiahe's consistent quality concept, integrating professional design, premium materials and advanced technology. It is widely recognized by domestic and foreign customers for its reliable performance, precise dimensions, long service life and strong customization capability, establishing a good brand reputation in the global welding industry.
We provide one-stop after-sales service and technical support, responding quickly to customer needs such as product consultation, customization scheme design, installation guidance and after-sales maintenance. We are committed to becoming a reliable partner in the field of automated welding, providing customers with cost-effective Flat-tip Bent Electrode solutions and boosting the stability and efficiency of automated production lines.
